Working principle and precautions for use of automatic metal straight seam welding machine

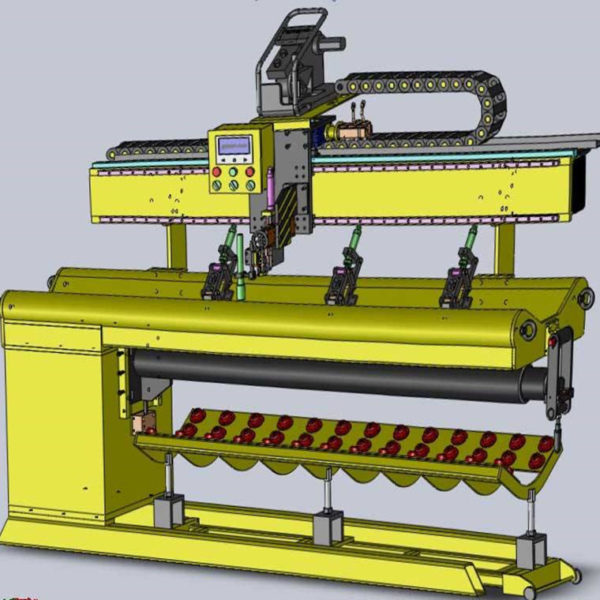

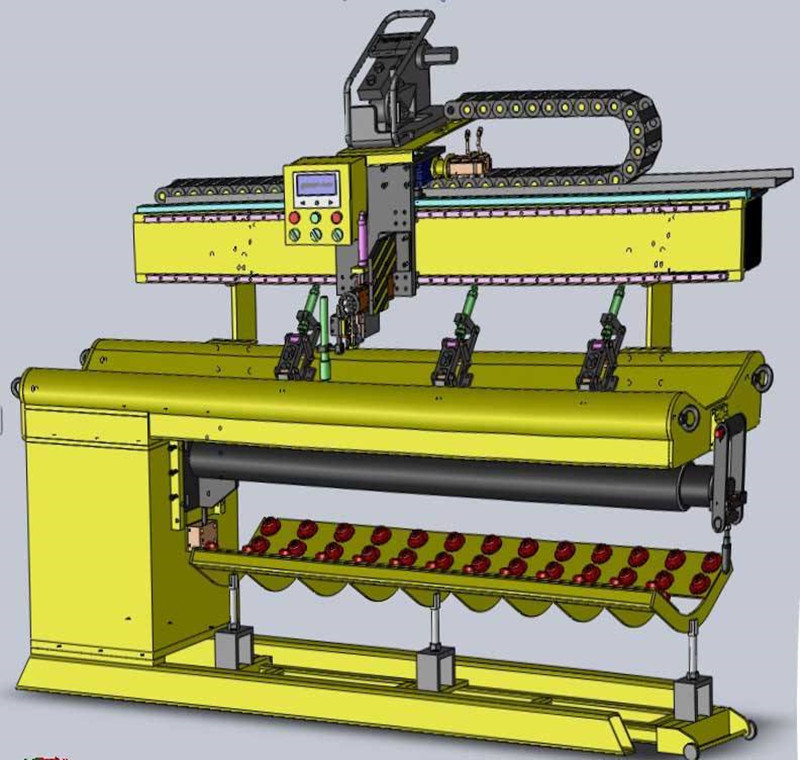

What are the components of the automatic metal straight seam welding machine
After years of development, the automatic metal straight seam welding machine has now become an advanced manufacturing technology. The technology is gradually developed.
In order to give you a better understanding of welding equipment, the editor will explain to you that the automatic metal straight seam welding machine is mainly composed of
Which parts make up.
- Welding power source: The output power and welding characteristics of the automatic welding equipment should match the recommended welding process, and be equipped with an interface for connecting with the main controller;
- Welding head: This part is a precision welding head mechanism mainly composed of welding head support frame, suspension trudger and other components. The drive system should be equipped with encoder servo motor;
- Welding parts moving or moving mechanism: mainly composed of welding roller frame, head and tail frame turning machine, slewing platform, moving machine and so on.
- Auxiliary devices: This part of the system is the wire feeding system, circulating water cooling system, flux recovery and delivery system, wire frame, cable hose and drag chain mechanism structure design, and electrical control design. There are many welding methods of automatic metal straight seam welding machine, and it is mainly used in a processing technology of hardware products.
Today I will share with you several welding methods of metal straight seam welding machine. If you want to learn the welding method, you must first know its structure and characteristics.
The structure and characteristics of automatic metal straight seam welding machine:
- Welding power source. Its output power and welding characteristics should match the welding process method to be used, and it is equipped with an interface for connecting with the main controller.
- Wire feeder and its control and speed regulation system. For wire feeders with higher requirements for wire feeding speed control accuracy, the control circuit should add speed feedback.
- The welding head uses its moving mechanism. It is composed of welding head, welding head support frame, suspended carriage, etc. It is based on a precision welding head mechanism, and its drive system should adopt a servo motor equipped with an encoder.
- Weldment movement or displacement mechanism. Such as welding roller frame, head and tail frame turning machine, slewing platform and positioner, etc., the precise mobile displacement mechanism should be driven by a servo motor.
Welding method:
First of all, we must prepare the welding materials and check whether the welding materials are flat and tidy. If there are stains and burrs, they must be cleaned up in advance,
because these will affect the welding effect.
- Turn on the power, adjust the welding data, and input and save it in the touch screen system.
- Turn on the power of the welding machine and adjust it to suit the voltage and other parameters of the product.
- Open the oxygen cylinder and check whether the gas is being delivered normally.
The above three steps are necessary steps before operation.
