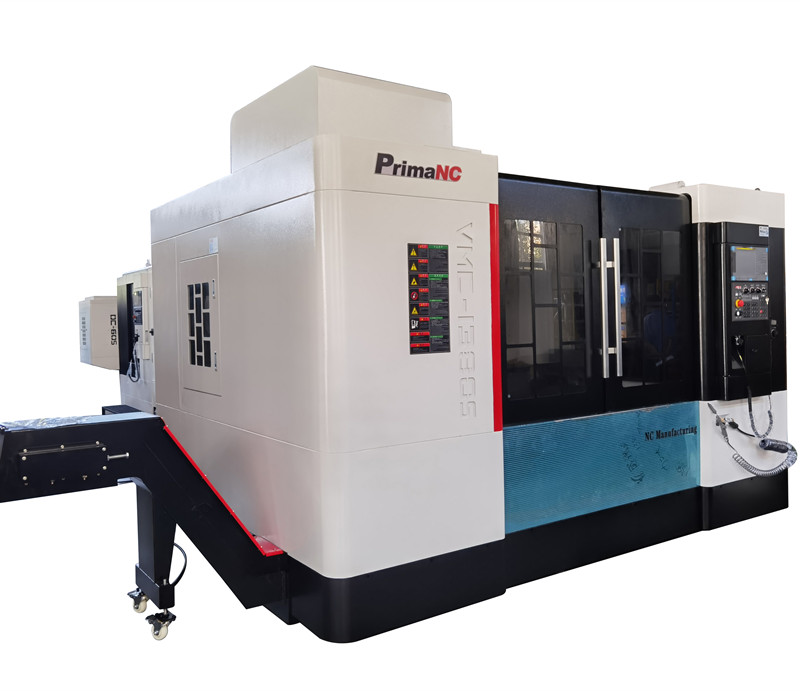

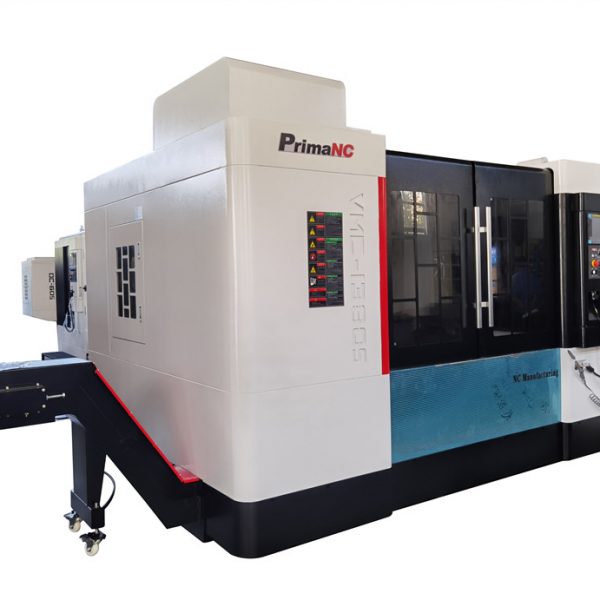

VMC1370 High-speed 5 Axis Linkage Machining Center 3+2 Vertical Cnc Vertical Machining Cnc Milling Center
CNC Machining Center Application: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional Vertical Machining Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping,boring ,etc.
|
Model
|
VMC1370 (GSK25i system)
|
VMC1580(GSK25i system)
|
|
Travel parameters of 3 axis
|
||
|
X /Y/Z axis travel
|
1300/700/700mm
|
1500/800/700mm
|
|
Spindle nose to table surface
|
110-810mm
|
130-860mm
|
|
X/Y/Z axis AC servo motor
|
torque N.m 22/22/30
|
torque N.m 30/30/38
|
|
Spindle center to column surface
|
750mm
|
810mm
|
|
Worktable
|
||
|
table size
|
1400×700mm
|
1800×800mm
|
|
Max.loading
|
1000Kg
|
1500kg
|
|
T Shot
|
5-22×140mm
|
5-22×135mm
|
|
Feeding parameters
|
||
|
X/Y/Z axis rapid feed
|
24/24/20m/min
|
20/20/15m/min
|
|
Cutting feed
|
1-10m/min
|
1-6m/min
|
|
Spindle parameters
|
||
|
Main shaft connection
|
Belt
|
Belt
|
|
Spindle taper
|
BT40-150
|
BT50-155
|
|
Range of spindle speed
|
8000rpm(Optional:10000 )
|
8000rpm(Optional:10000 )
|
|
Spindle motor
|
11kW
|
15KW
|
|
ATC paremeters
|
||
|
ATC capacity
|
24qty
|
24qty
|
|
Max.tool dia
|
Φ80/Φ150mm
|
Φ127/Φ200
|
|
Max.tool weight
|
8kg
|
18kg
|
|
Precision
|
||
|
Position accuracy(JIS standard)
|
±0.008/300mm
|
±0.008/300mm
|
|
Repeat positioning accuracy(JIS standard)
|
±0.005mm
|
±0.005mm
|
|
Shape and weight
|
||
|
Dimensions
|
3700×2750×2800mm
|
4260×3250×2940
|
|
Weight
|
8200kg
|
13000kg
|
CNC Machining Center Application: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional Vertical Machining Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping,boring ,etc.
