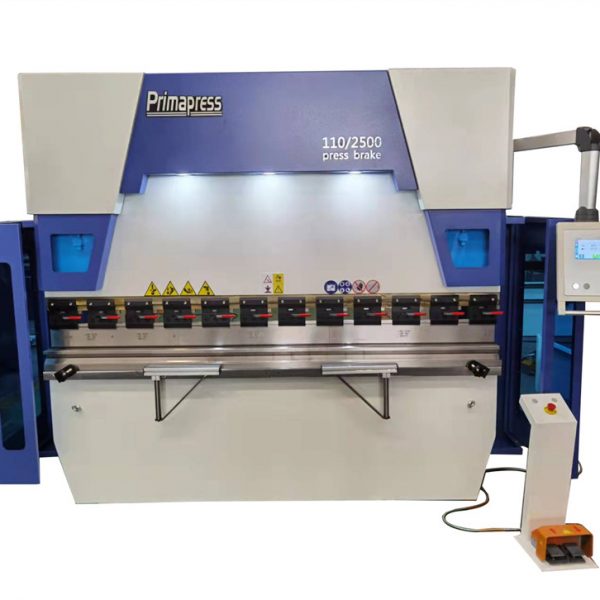

Torsion bar CNC hydraulic Press Brake bending machine WC67K 100T/2500mm with Swiss Cyblec CT8 CNC
The Whole Structure of Press Brake:
■ Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
■Prima PRESS BRAKE is Equipped with the Delem user-friendly user interface,the DA-41 provides all main press brake functionality.
■Automatic tonnage and stroke adjustment for bending angles.Perfect bending results with easy angle input and operation of machine.
■ Provides CNC control of standard Y-axis +X-axis + Manual R-axis + Z-axis.
Required specifications for reference.
| No | Items | parameters | remarks | Leading Bending technology
Excellent Manufacturer |
| 1 | Nominal force | 1000KN | ||
| 2 | Bending length | 2500mm | ||
| 3 | Distance between | 2000mm | ||
| 4 | Throat | 320mm | ||
| 5 | Stroke | 200 mm | ||
| 6 | Max open height | 400 mm | ||
| 7 | X,Y axis travel | repeat positioning accuracy: ±0.02mm | ||
| 8 | Approach speed | 120 mm/s |
Three Speed is adjustable in CT8 controller |
|
| 9 | Working speed | 60mm/s | ||
| 10 | Backing speed | 120 mm/s | ||
| 11 | Control axis | X,Y, CNC control | ||
| 12 | Dimension | 2750x1800x2500mm | Removable | |
| 13 | Electrics | 380V/50Hz/3Ph | Optional | |
| 14 | Motor | 7.5 | Kw | |
Attachment with the machine& Machine key components list
| No. | 1 years spares | Remark | Name | Origin | ||
| 1- | Grease gun | Free of charge | Asynchronous motor | Siemens, Germany | ||
| 2- | Keys to button lock and electric cabinet lock | FOC | Controller | CT8, Swiss | ||
| 3- | Foundation bolts | FOC | Transformer | SCHNEIDER | ||
| 4- | O-type sealing rings | FOC | AC contactor | SCHNEIDER | ||
| 5- | Combined washers | FOC | Circuit Breakers | SCHNEIDER | ||
| 6- | Mobile type foot switch | Servo motor | Estun | |||
| 7- | Operation & maintenance manual | In English | Gear pump | Siemens pump | ||
| 8- | Electrical diagram | In English | Sealing parts | Valqua ,Japan | ||
| 9- | Operation Instruction ENGLISH
Operation Instruction（Machine） Packing list, Instruction of System |
Hydraulic Integrated Systems&valves | Bosch, Germany | |||
1，HYDRAULIC SYSTEMS , Bosch Germany Brand:
■ Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch -Rexroth,Germany.
■ All pipes, flange and joint with vibrations proof and leakage proof design and setting .
■ All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance
■ Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
■ The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).
