Description

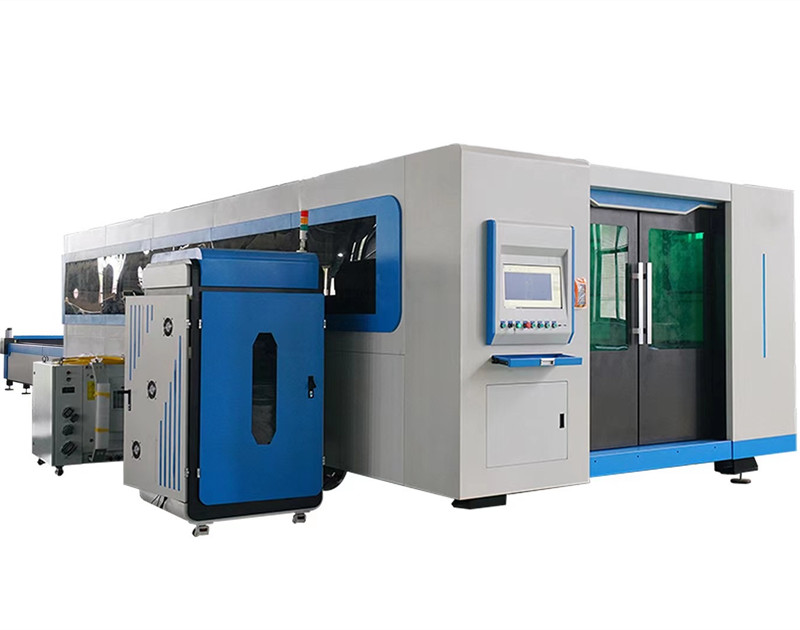

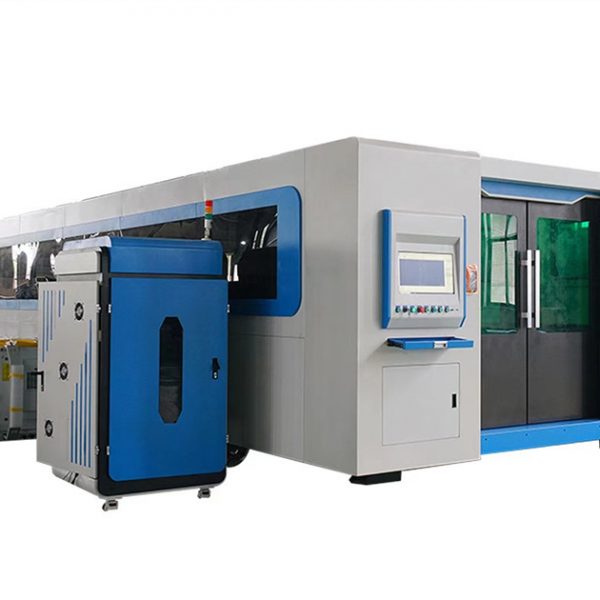

Sheet metal high power 8000w 6000w full cover exchange table cnc fiber laser cutting machine
8000W Raycus brand Cypcut control system with exchangeable table and Germany Precitec head
Voltage stablizer
Japanese Yaskawa servo motors system
Germany ROR gears
Japan SMC /Airtac pneumatic parts
French Schneider electronic parts
French Motoreducer reducer
Auto exchangeable working table
Integrated cast aluminum beam
Taiwan HIWIN square rail
Laser head automatically adjust system.
Smoke purify system
Water cooling machine
Three years warranty
| Model | PM 8000W Fiber Laser cutting machine |
| Laser Type | Raycus |
| Laser Wavelength | 1070nm |
| Laser Maximum Power | 8000W |
| Max. Cutting thickness | Carbon steel 28mm
Stainless steel 16mm Brass 12mm |
| Total Power Consumption | <60KW |
| Working Size | 3000X1500mm |
| Max.cutting speed | 0-80m/min(Depending on the material and thickness) |
| X, Y, Z Axis Orientation Precision | ≤±0.05mm/m |
| X, Y, Z Axis Repeat Precision | ≤±0.03mm /m |
| Min line width | ≤0.15mm |
| Maximum Empty Running Speed | 120m/min |
| Driving way | Japanese Yaskawa servo motors system |
| Transmission way | Y-axis imported gear rack double driver,
X-axis imported ball screw |
| Cooling System | Water Cooling |
| Continous working time | 24 Hours |
| Environment temperature | 0-35°C |
| Power requirements | 220V/380V /50Hz or 60Hz |
