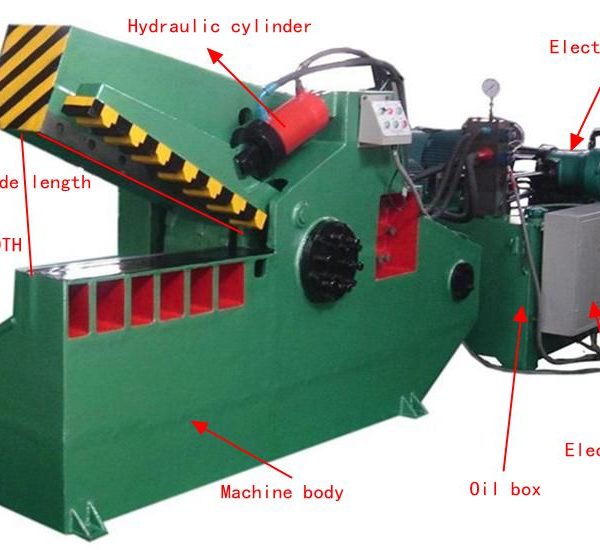

Q43-120t hydraulic alligator shear,scrap metal shearing machine
1,Products name:
Q43-1200 hydraulic sheet metal shear (factory and supplier).
2.Applications:
Q43 Series of hydraulic alligator shears are applied in recycling companies,automobile dismantling plants,smelting &casting industry to cold-shear section steel and metallic structural parts into acceptable furnace charges.
3.Features:
1)Adopting hydraulic drive,Q43 series feature simple operation & easy maintenance,it’s safe & reliable.
2)Shear force 9 grades from 63 to 500 tons;blade length
400mm,600mm,700mm,800mm,1000mm,1200mm,1600mm,1800mm,
3)No footing bolts needed in installation;diesel engine can be equipped for power
4.Technical parameters for Q43 model alligator shear
| Type | Largest shearing Force(KN) | Largest Holding Force(KN) | Largest Bladeing Opening(mm) | Blade Length(mm) | Frequency of every per minute | Scrap Size(mm) | Power(KW) | Operation |
| Q43-630 | 630 | 120 | 200 280 360 | 400 600 800 | 8-20 | 30×30Φ35 | 7.5 | Manual feeding ,manual or automatic operation |
| Q43-1000 | 1000 | 160 | 280 | 600 | 10-20 | 40×40Φ45 | 15 | |
| Q43-1200 | 1200 | 200 | 280 | 600 | 14-24 | 45×5Φ50 | 15 | |
| Q43-1600 | 1600 | 250 | 320 | 700 | 12-20 | 55×55Φ63 | 18.5 | |
| Q43-2000 | 2000 | 250 | 380 | 800 | 12-20 | 70×70Φ75 | 22 | |
| Q43-2500 | 2500 | 260 | 480 | 1000 | 12-20 | 80×80Φ85 | 30 | |
| Q43-4000 | 4000 | 420 | 520 | 1200 | 12-20 | 100×100Φ85 | 37 |
5,Company Commitment:
1,Equipment free of charge for one year warranty and lifetime maintenance.
2,Customer service response time of 8 hours in China, and Network Online Service in 24 hours overseas, when necessary
3,sending technical engineers to the customer site to solve the problem.
