Description

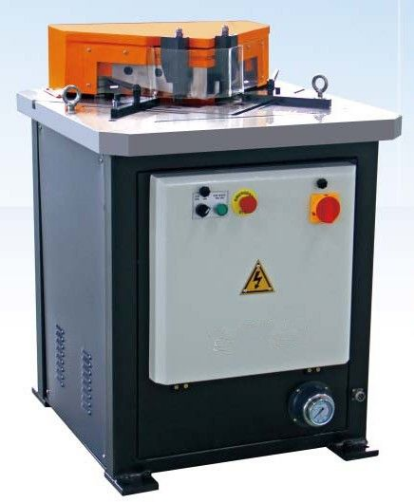

Q28Y 6*250mm fixed angle notching machine , angle notcher machine
video link:
1.Hydraulic under move style,
2.Fixed angle 90, changeable rulers
3.Its welding together by steel plate
4.Single-step or multi-steps choice
5.Lubrication all together
6.The angle is adjustable in chain.
7.Affordable price and high efficiency
8.Big amount and stock
- Whole welding structure.
- High accuracy and speed.
- Less maintain and longer using life.
Video in Youtube:
| https://youtu.be/aPoUIZw-Cvk |
| https://youtu.be/82ochCLkOVw |
| https://youtu.be/LMJEYpEqaoc |
Technical parameters:
| No | Name | 6x250mm | 8x300mm | 10x300mm |
| 1 | Max thickness | 0.5-6mm | 0.5-8mm | 0.5-10mm |
| If stainless steel | 0.5-3mm | 0.5-4mm | 0.5-5mm | |
| 2 | Max length | 250mm | 300mm | 300mm |
| 3 | Cutting angle | 90 | 90 | 90 |
| 4 | Stroke times | 35-60/min | 30-50/min | 25-50/min |
| 5 | Worktable height | 850mm | 900mm | 900mm |
| 6 | Motor power | 4Kw | 5.5Kw | 5.5Kw |
| 7 | Length | 910mm | 950mm | 1020mm |
| 8 | Width | 810mm | 820mm | 910mm |
| 9 | Height | 1050mm | 1150mm | 1190mm |
| 10 | Weight | 710Kg | 850Kg | 1120Kg |
