Description

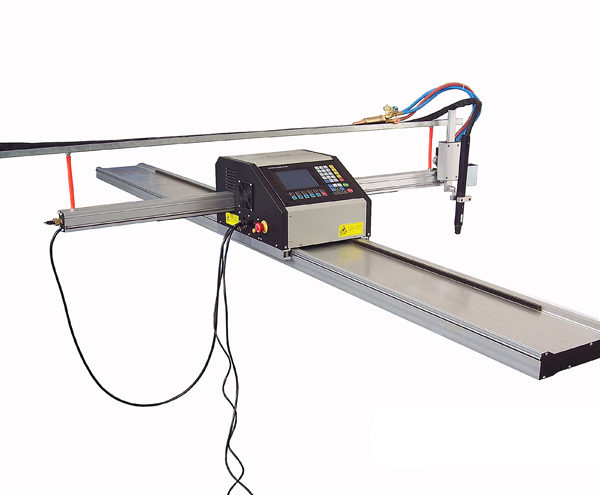

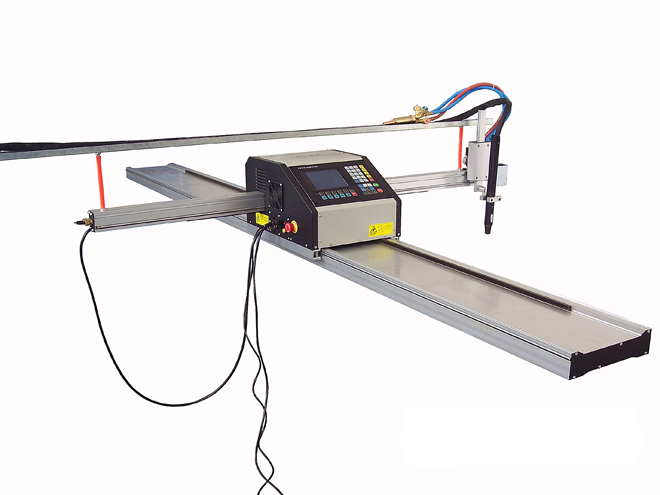

portable CNC plasma cutting machine, China cheap Portable cnc plasma cutter
Product Features
(1) Tailored track acquires high-intensity, high-speed and high-precision features.
(2) Human computer interface design makes the machine easy to learn and operate, and have complete functions.
(3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
(4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
(5) With two cutting modes: Flame Cutting & Plasma Cutting.
(6) Chinese, English, French, and Portuguese are ready to use.
(7) Can automatically memorize and restore when power is off.
(8) Plasma THC ( torch height control) device function: By automatically adjust the height of the torches
according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile,
protect the torch form damage and prolong life span of the nozzles.
(9) With status indication device.
(10) With positioning functions of protection cover, proximity switch and dual-speed.
(11) Compatibility of the domestic plasma and foreign-brand plasma.
| Model | Cutting Range
MM |
Supply Voltage
V/HZ |
Cutting TorchNumber
of groups |
Cutting speed
(mm/min) |
MAX no-loading
speed (mm/min) |
Overall dimensions
L*W*H |
Weight
(kg) |
| HNC-1800W-3 | 1800*3000 | AC220V-50HZ | 1 | 50-750 | 3000 | 3.5*2.6*0.4 | 175 |
| HNC-1800W-3.5 | 1800*3500 | AC220V-50HZ | 1 | 50-750 | 3000 | 4*2.6*0.4 | 191 |
| HNC-1800W-4 | 1800*4000 | AC220V-50HZ | 1 | 50-750 | 3000 | 4.5*2.6*0.4 | 207 |
| HNC-1800W-5 | 1800*5000 | AC220V-50HZ | 1 | 50-750 | 3000 | 5.5*2.6*0.4 | 239 |
| HNC-1800W-6 | 1800*6000 | AC220V-50HZ | 1 | 50-750 | 3000 | 6.5*2.6*0.4 | 271 |
