Description

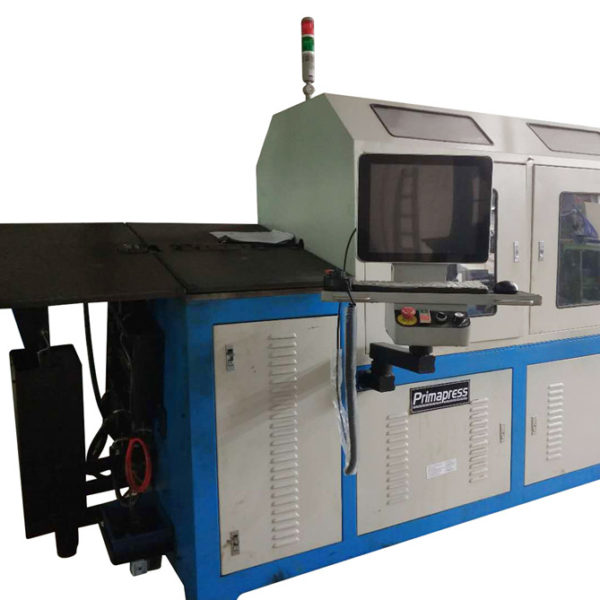

PM10 3d Wire Bender Machine 5-10mm 3D CNC Wire bending machine
video link in Youtube:
Using area:
A: auto parts, automobile seat frame, door lock rod, serpentine spring, including single and double snakes, snake car cathead circlip, automobile safety belt circlip, automobile seat support wire, motorcycle parts, bicycle parts, bicycle are more suitable for production of wire forming machine;
Two, daily use hardware products: kitchen display rack, stacks, egg cradle, cupboard drawing basket, refrigerator frame, and bathroom frame steel
Silk products, supermarket shopping basket, cart, display hanger and so on.
Three, iron wire craft products, lighting line molding products, fishing gear accessories products, including red wine rack, KTV fruit bowl, Christmas each
The gifts made of steel wire are used in planes or stereoscopic parts that are made of steel wires or wires of different shapes.
Four, all kinds of cage processing: pet cage, bird cage, dog cage, cage, squirrel cage and so on.
Five, clothes hanger, shoe hang, curtain hook, shelf hook, display rack hook and so on all kinds of hooks.
3D CNC Metal Wire Bending Machine：
3D CNC wire bending machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.
Advantages & Main Features
1)3-4 pairs feeding roller,feeding motor fixed on the bottom base, so as to decrease the feeding box weight,that wire rotation is more fast and stable.
2)Twist head is designed in copper tube transport, more stable and stronger than bearing transfer
3) Adopting advanced world famous brand components in CNC parts ,electric parts and operation parts.
4) Running in a high automatization and intellectualization,no pollution
Technical Parameters
| Model | PM3D | |
| Bending Diameter | 2-6&5-10&6-13mm | |
| Feeding Speed | 70m/min | |
| Twisting head off 90 ° minimum time required | 0.1s | |
| Reverse the core conversion minimum time required | 0.1s | |
| Lane 90 ° minimum time required | 0.08s | |
| Maximum speed lifting platform | 333mm/sec | |
| Maximum lifting speed reversing mechanism | 250mm/sec | |
| The maximum feed stroke | Unlimited | |
| Feeding mode | Wheel Wire; | |
| Maximum bending radius | 50mm | |
| Maximum bending angle | 190° | |
| Each number can be set bend | Unlimited | |
| Set the number of files | Unlimited | |
| Working speed | Bending speed | 180°/0.5sec |
| Rotation speed | 360°/2sec | |
| Feeding speed | 700mm/1sec | |
| Accuracy | Bending angle | ±0.05° |
| Rotation angle | ±0.05° | |
| Material input | 1. Numerical formula;
2. Teaching style; |
| Controller | Industrial Computer |
| CNC Data Input | Touch screen input+Handwheel input; |
| Bending(C)servo motor power | 2.7KW |
| Rotation(B)servo motor power | 2.7KW |
| Feeding(Y)servo motor power | 3.8KW |
| Electrical Capacity | 15KVA |
| Machine weight | 4300KG/4500/4800kg |
| Machine size L*W*H(mm) | 4300*1600*1650MM
|
