Plasma laser cutting Metal Sheet Stainless Steel Aluminum Plate surface Deburring grinding Belt Sander Sanding Machine

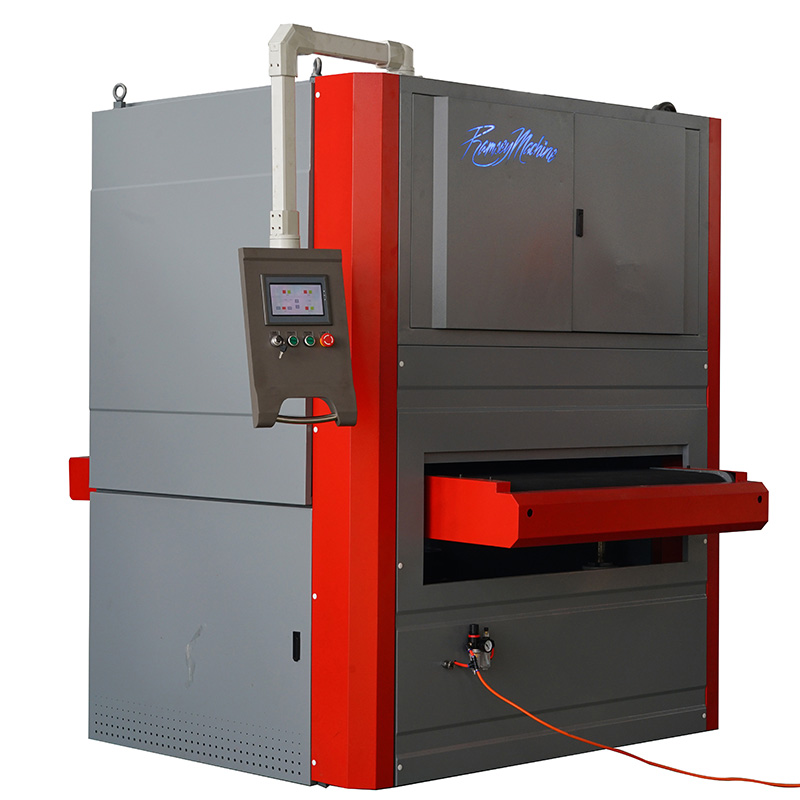

High speed aotomatic Wide Belt Sander Sheet Metal Sanding machine for Metalworking
In any cutting, drilling, laser cutting, mill, and other machining processes, burrs, hot slag, and scum will be produced at the edge of the workpiece,for the next step, the coating, burrs need to be removed. PM600 automatic sheet metal sander and edge rounding machine with a width of 0-600mm or customized, is suitable for a variety of metal plates.
| Working width | 0-1300mm | 0-1000mm | 0-800mm | 0-600mm | |
| Processing thickness | 2-100mm | 2-100mm | 2-70mm | 2-50mm | |
| Processing length | ≥20mm | ≥20mm | ≥20mm | ≥20mm | |
| Abrasive belt motor | 18.5kw*2 | 15kw*2 | 11kw | 7.5kw | |
| Belt speed | 1100m/min | 1100m/min | 1100m/min | 1100m/min | |
| Belt size | 1000×2600mm | 1000×2200mm | 1000×1900mm | 1000×1500mm | |
| Automatic feeding system motor | 4kw | 4kw | 4kw | 4kw | |
| Conveyor belt adjustable speed | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min | |
| Lifting system motor | 1.1kw | 1.1kw | 1.1kw | 1.1kw | |
| Brush roller motor | 2.2kw*2 | 2.2kw*2 | 2.2kw*2 | 2.2kw*2 | |
| Working pressure | 0.4-0.7MPa | 0.4-0.7MPa | 0.4-0.7MPa | 0.4-0.7MPa | |
| Control method | touch screen+PLC | touch screen+PLC | touch screen+PLC | touch screen+PLC | |
| Adjustment accuracy | 0.02mm | 0.02mm | 0.02mm | 0.02mm | |
| Weight | 4800kg | 3800kg | 2700kg | 1800kg |
