Description

MIG TIG MAG automatic welding 6 Axis welding robot metal welding robot 6 axis

Welding robot information:

Model	PB 1400
Payload	6kg
Max Working Radius	1441.5mm
DOF	6axis
Body Weight	160kg
Reducer Brand	Italy RRRobotica
Motor Brand	Italy RRRobotica
Drive Brand	Italy RRRobotica
Rated Power	2.5kw
Max Speed	J1	149°/s
	J2	149°/s
	J3	149°/s
	J4	229°/s
	J5	180°/s
	J6	270°/s
Max Operation Area	J1	±170°
	J2	153°~-92°
	J3	80°~-100°
	J4	±140°
	J5	±120°
	J6	±360°
protective specification	43
Position Repeat Accuracy	±0.06mm
controller	TRC3C-B06
Working Temperature	0~45°

TURIN Welding Robot Features:

Welding Robot TKB1400:

Features

Flexible installation method:

TKB1400 Robotic arm span is 1441.5mm 6kg Payload. It can be installed on the ground or upside down flexibly

Excellent price / performance ratio

Product structure design rigorous, the key components are from first-class suppliers, superior product performance. Superior acceleration and deceleration performance, help to shorten the working time, improve production efficiency.

High-end configuration:

The robot’s core components are all imported brands (reducer: 1/2/3 axis, Japan’s Nabtesco; 4/5/6 axis Japan’s new treasure. Servo Drive: South Korea LS. Drive Motor: 1/2/3 Axis, South Korea LS; 4/5/6 axis, Japan Tamagawa), and the use of the most advanced EtherCAT bus technology, with high speed, high precision, good stability, long hours 24 hours continuous operation.

Easy to operate and programming:

Through the intuitive and friendly teaching pendant, robotics and arc welding process can be easily programmed and maintained. The teach pendant uses a popular PC graphical interface, no matter whether the robot is controlled or the specific process equipment, the operator has no stranger feeling.

Quick support and service:

Proactive and timely customer service, regular maintenance. Spare parts quality and cheap, can be quickly replaced. High-quality service for your production escort.

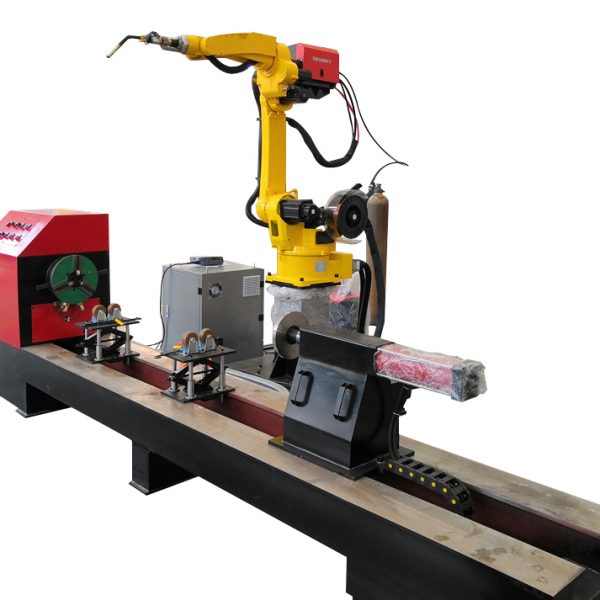

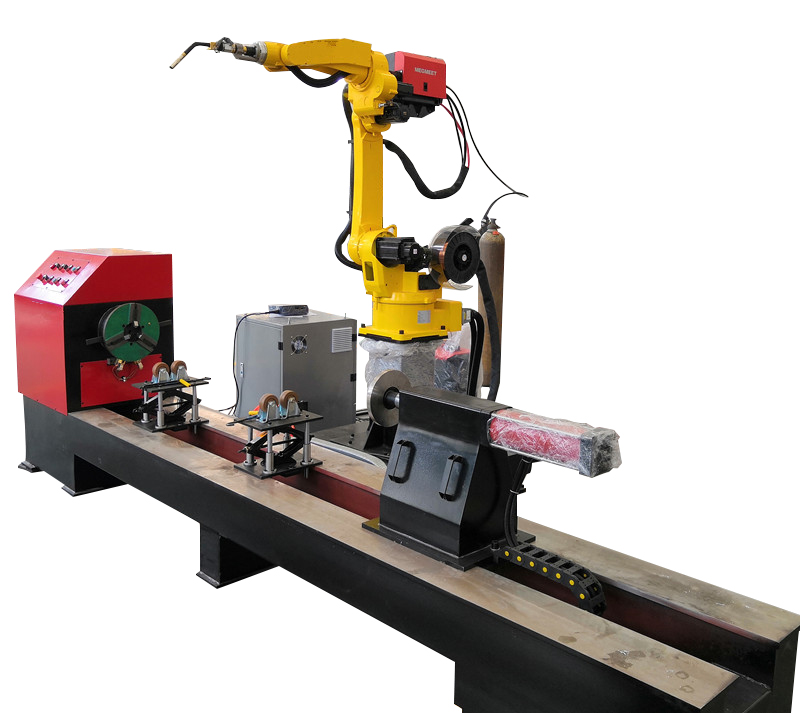

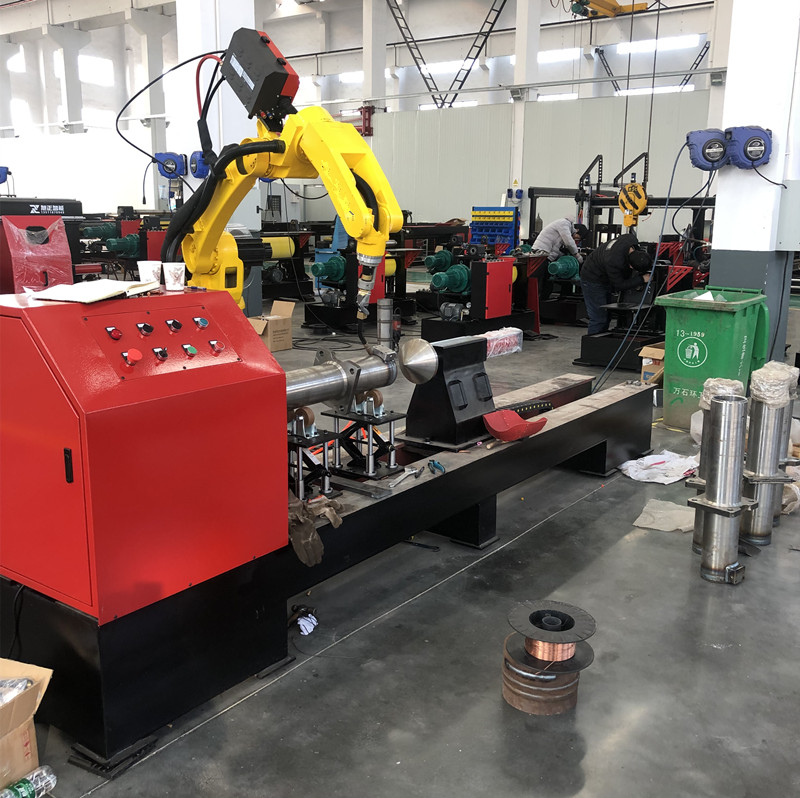

6 axis welding robot with the rotary welding table:
