Description

(Automatic punching line optional with Uncoiler, NC Feeder and progressive die)

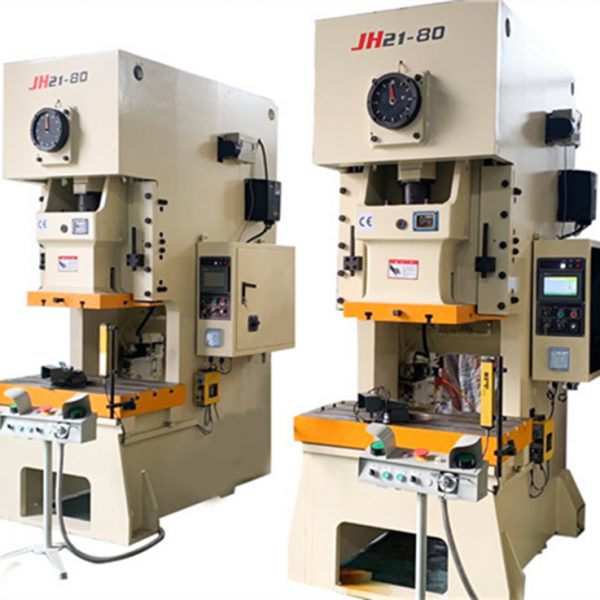

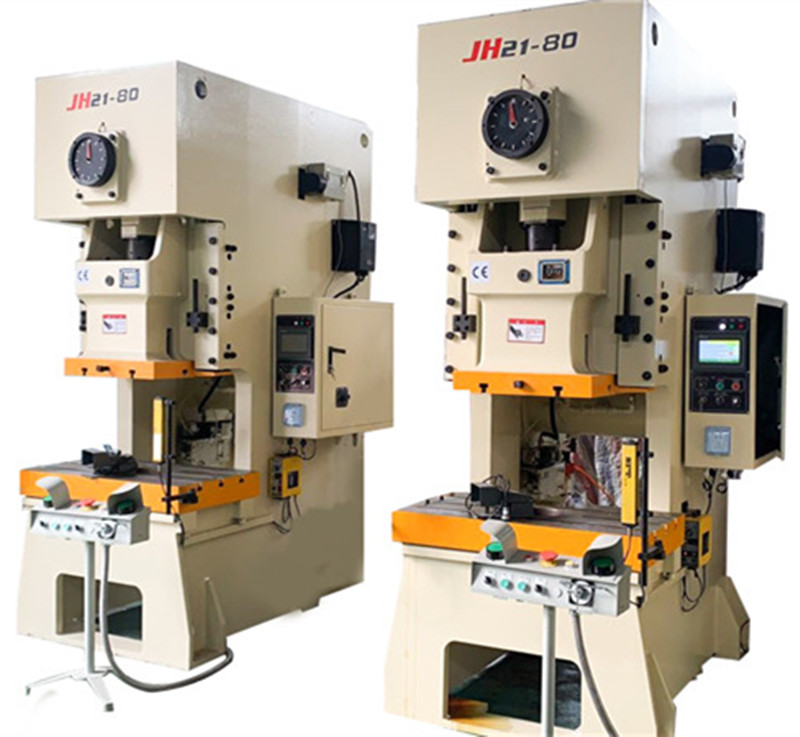

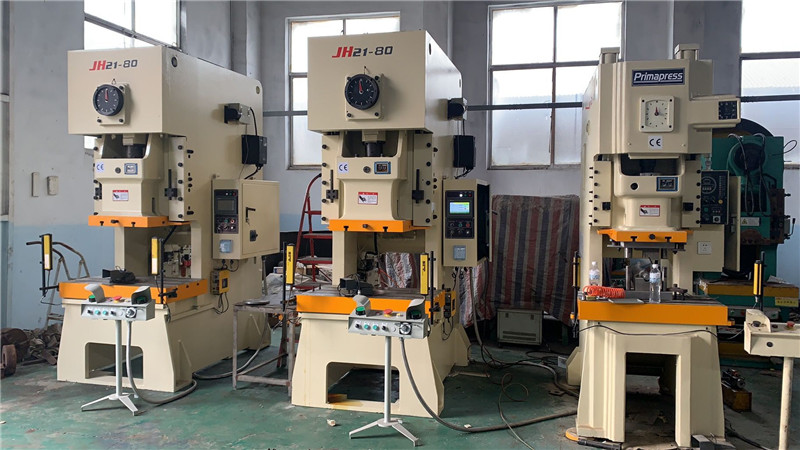

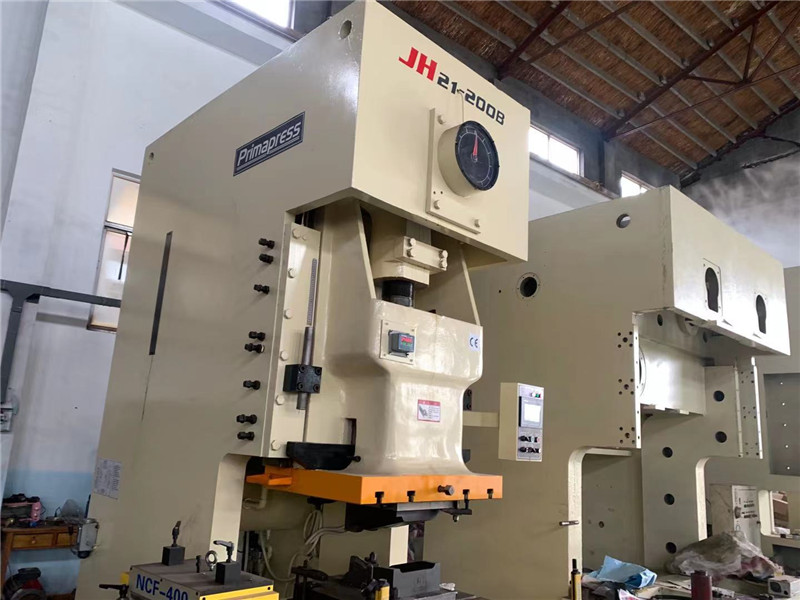

JH21series open back power press stamping machine with wet clutch and hydraulic overload protector

Open Back Press with Fixed Bed, a kind of thin sheet metal processing universal press imported advanced technology of AIDA company in Japan, which is suitable for shearing, punching, blanking, bending and shallow drawing. The structural feature is as follows:

I. Brief introduction of structure

1,The frame is welding with whole steel plate which has high rigidity, reasonable structure and beautiful design.

2,The press adopts the vertical crankshaft structure. The distance of fulcrum is short and the crank is rigid.

Driving gear is installed into the frame and gear is immersed in oil reservoir. Customer could choose Electromagnetic governor（Wannan motor factory）, which is stepless speed regulation within a certain range and enlarge the area of craft.

3,The press adopts Italy low inertia combined wet friction clutch and brake made in Shanghai OMPI, which has little passive inertia, low energy consumption, reliable interlock of clutch and brake and long longevity.

4,The slide is a whole cast form construction which adopts hydraulic overload protector made in Showa, Japan with agile and reliable action. After overload, it can reset automatically to reduce the down time and improve the availability of press. High pressure oil seal which is imported from German is installed in slide high pressure cylinder.

5,The shut height adopts electric adjustment, which has digital display. Its display is 0.10mm.

The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.

The press has pneumatic balancer, which reduce the second stroke. It runs smoothly to improve the dynamic precision of press.

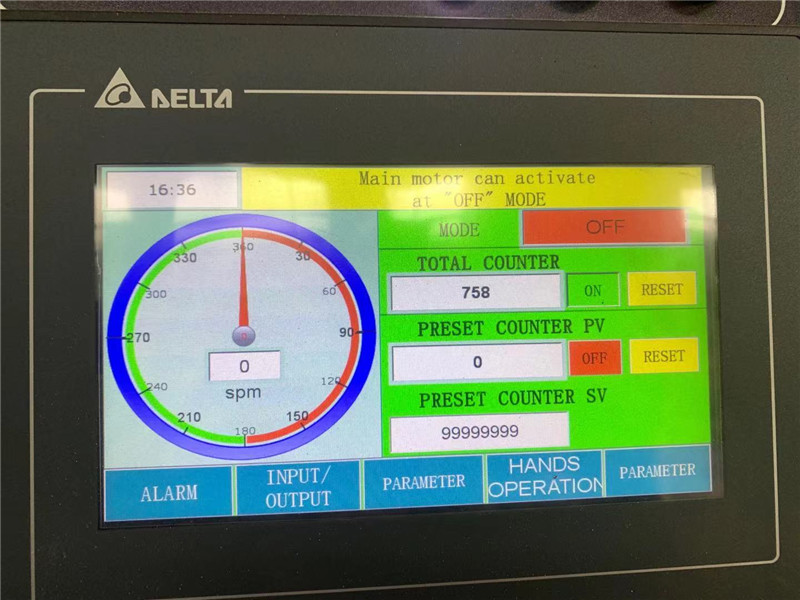

6,The control part adopts PLC from Mitsubishi, which is efficient to guarantee the reliability of control part.

7,The press adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch.

8,The press adopts cam controller which be combined with proximity switch. It can send signal exactly within the range of 360°and control the criterion of various actions and the harmony of assist machine to improve the reliability of press. Besides, the press has two-hand operating button and foot pedal switch, which can realize Continuous, Single and Inch mode.

II.Guideline of Technical performance

The model JH21-315 press is manufactured according with accuracy of open press (JB/T 6580-93) and technical requirement of open press (JB/T 6580.1-1998). The security is according with the security and technical terms standard of forging machinery (GB17120-1997) and the security and technical requirement standard of mechanical press (JB3350-93).

III.Main Technical Specifications:

			JH21-25	JH21–45	JH21-63	JH21-80	JH21-110	JH21-125
Capacity		kN	250	450	630	800	1100	1250
Nominal Stroke		mm	3	4	4	5	6	6
Slide Stroke		mm	80	100	120	140	160	160
SPM	Fixed	min-1	100	80	70	60	50	50
SPM	Variable	min-1	80-120	70-90	60-80	50-70	40-60	40-60
Max. Die Height		mm	250	270	300	320	350	350
Die Height Adjustment		mm	50	60	80	80	80	80
Between Slide Center & Frame		mm	210	230	300	300	350	350
Bolster (FB×LR)		mm	400×700	440×810	580×900	580×1000	680×1150	680×1150
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.)		mm	φ170×20×φ150	φ180×30×φ160	φ200×40×φ180	φ200×40×φ180	φ260×50×φ220	φ260×50×φ220
Bolster Thickness		mm	80	110	110	120	140	140
Bolster Opening (Dia./FB×LR)		mm	260×250	300×300	390×460	390×520	420×540	420×540
Slide Area (FB×LR)		mm	300×360	340×410	400×480	420×560	500×650	540×680
Shank Hole (Dia.×Dpth)		mm	φ40×60	φ40×60	φ50×80	φ50×80	φ60×80	φ60×80
Between Columns		mm	450	550	560	640	760	760
Main Motor Power		kW	3	5.5	5.5	7.5	11	11
Outline Size (FB×LR×H)		mm	1300×1050×2050	1390×1200×2400	1580×1210×2520	1640×1280×2700	1850×1450×3060	1850×1490×3060
Net Weight		kg	2600	3450	5400	7000	9340	9900
