Description

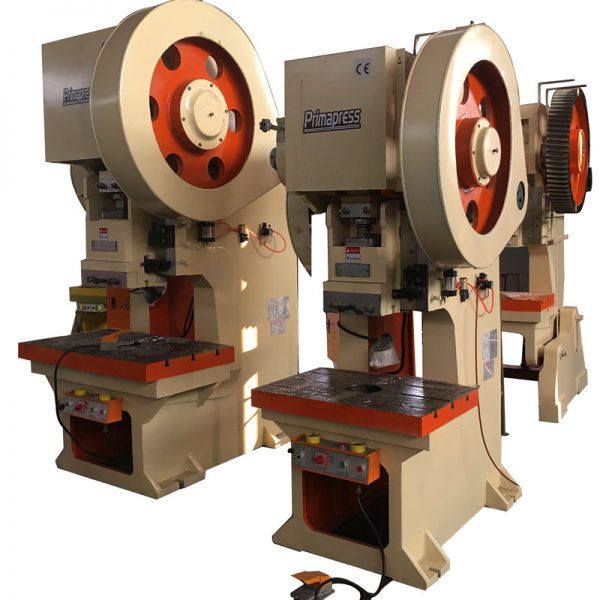

J23series model D press with adjustable stroke JC23series model adjusting stroke Eccentric power press punching machine with adjustable stroke
◆ Adopts horizontally placed crankshaft.
◆ Stroke adjustment device mounted on crankshaft.
◆ Rigid rotated bond clutch.
◆ Manual shut height adjustment with scale display.
JC23series model adjusting stroke Eccentric power press punching machine with adjustable stroke
| JC23-6.3D | J23-10D | J23-16D | J23-25D | JG23-40D | JC23-63D | J23-80D | ||
| Capacity | kN | 63 | 100 | 160 | 250 | 400 | 630 | 800 |
| Nominal stroke | mm | 2 | 2 | 2 | 2.5 | 4 | 4 | 5 |
| Slide Stroke | mm | 0-40 | 0-60 | 0-70 | 0-80 | 20-120 | 20-120 | 10-130 |
| SPM | min-1 | 170 | 145 | 125 | 60 | 55 | 50 | 45 |
| Max. Die Height | mm | 105 | 130 | 170 | 180 | 220 | 260 | 270 |
| Die Height Adjustment | mm | 20 | 35 | 30 | 45 | 70 | 80 | 80 |
| Between Slide Center & Frame | mm | 110 | 130 | 170 | 210 | 260 | 260 | 270 |
| Bolster (FB×LR) | mm | 200×310 | 240×360 | 320×480 | 400×600 | 480×710 | 480×710 | 520×860 |
| Bolster Opening (Dia.×FB×LR) | mm | φ60 | φ120×20
×φ100 |
φ100 | φ120 | φ220×25
×φ180 |
φ200×45
×φ180 |
φ200×45
×φ180 |
| Bolster Thickness | mm | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Bolster Opening (Dia.×FB×LR) | mm | φ140×110
×160 |
φ130×90
×180 |
φ210×160
×240 |
φ180×130
×260 |
φ200×150
×300 |
φ250×200
×340 |
φ250×200
×340 |
| Slide Area (FB×LR) | mm | 120×140 | 150×170 | 180×200 | 210×250 | 270×320 | 280×320 | 280×380 |
| Shank Hole (Dia.×Dpth) | mm | φ30×55 | φ30×55 | φ40×60 | φ40×70 | φ50×70 | φ50×80 | φ60×75 |
| Max. Inclined Angle | ° | 30° | 25° | 25° | 25° | 25° | 25° | 20° |
| Between Columns | mm | 150 | 180 | 220 | 260 | 300 | 350 | 410 |
| Motor Power | kW | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 |
| Outline Size (FB×LR×H) | mm | 780×610
×1505 |
915×700
×1690 |
1150×900
×1910 |
1325×990
×2140 |
1600×1180
×2310 |
1810×1350
×2640 |
1810×1410
×2790 |
| Net Weight | kg | 360 | 600 | 1080 | 1900 | 3180 | 4218 | 5240 |
