Description
Sheet metal plate Hydraulic shearing machine with Auto cnc feeding table
video link:
Usage:

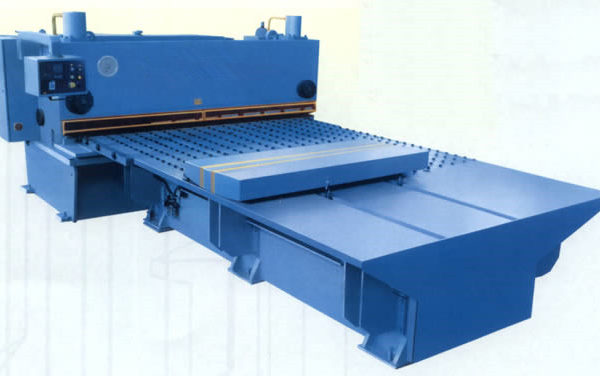

QC11K CNC Guillotine shearing machine with CNC Feeding table
this cnc feeding table is good for the big sheet metal automatic cutting.
Automatic Feeder Table For shearing machine , Scope, Specification and Standard feature
1) Effective stroke 1500×300mm(X), This is Max. sheet size for punching in first locating too. It’s capable to Feeding 3000 wide sheet by means of turning around the sheet in second locating and the system assures position accuracy automatically. It have also automatic positioning of sheets. So the sheets can alwasy be put in the right position.
2) Accuracy ±0.1mm for distance between holes,Center linearity of holes ±0.1mm.
3) Feed Speed 25 m/min ,adjustable,
4) overall Dimension 2500×2200×620 mm(same height as shearing machine).
5) Casting Frame, Tempered.
6) linear guide way and precision ball screw.
7) Table surface with balls or nylon brushes.
8) Pneumatic/manual Clamps(optional).
9) Dorna actuating motor.
10) One Set Electrical Control and Control cabinet
11) Control System ADTECH or other brand. The system is original created, which will be upgraded periodically.
12) Automatic reposition function, better for large volume production.
13) Control Cabinet (Main Operation Desk), with industrial PC and display
14) Power Supply: 4.5 KVA 380V/3 ph, 50Hz.(In accordance with power supply on site )
15) PLC is Xinjie Brand and servo motor is Beijing Huada
16) Precion ball screw and linear rail from Taiwan
17) Pneumatic clamping device
