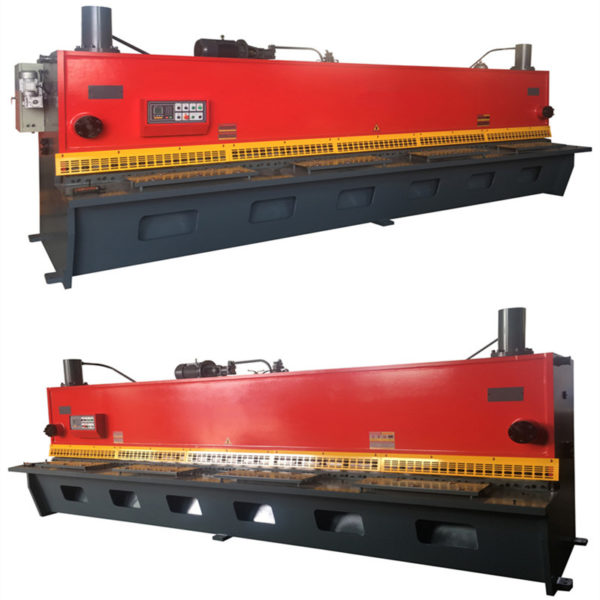

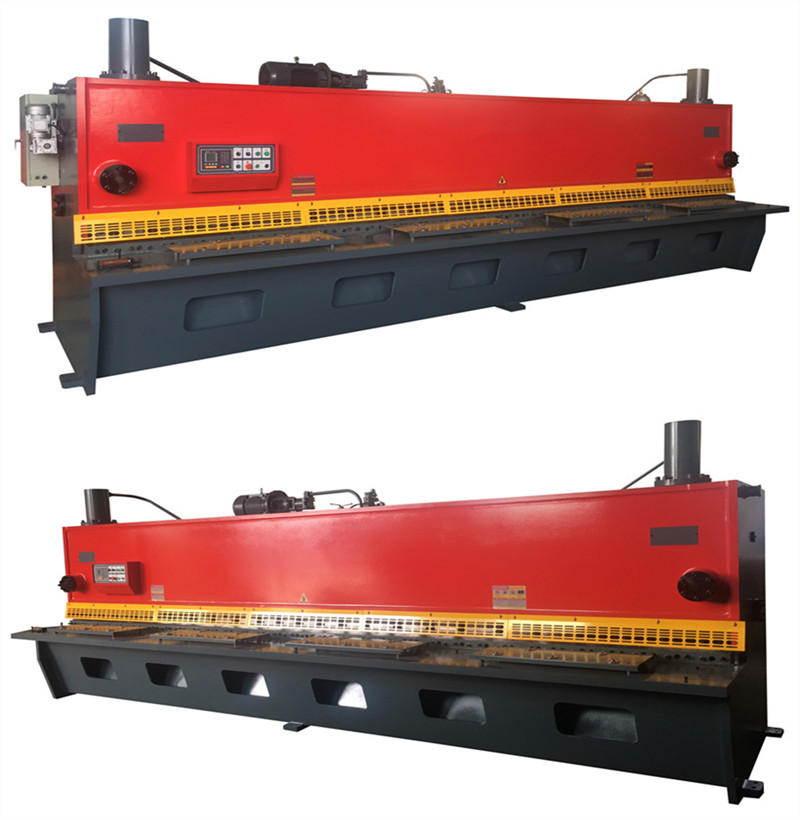

Iron plate Hydraulic Guillotine shear , Sheet metal Guillotine shearing machines
Video link:
Prima can supplier heavy duty guillotine shearing machine from 6-12m length, thickness from 1-60mm .
(1),Introduction of the hydraulic guillotine shearing machine:
1,This machine adopts steel plate welding structure , have high strength and good durability.
2,The frame is entirely welded with steel plates,and treated to relive stress by tempering.
3,Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
4,The portable and prompt adjusment of the blades gap and the value of gap are indicated by digital, convenient and fast.
5, Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6,Protection fence to ensure the operation safety.
7,Digital display device for size of back gauge and shearing times available.
8,The rectangular monoblock blades featuring long life with 4 cutting edges,quality high-carbon high-chrome blades D2 quality.
9, European key electrics and Hydraulic Valves Advanced integral hydraulic system with good reliablity-Imported from Germany.
(2),Standard Equipment:
1,Estun E21s NC control System
2,Powered Back gaugeX-axis
3,DELTA Inverter controlled back gauge
4,HIWIN Ball screws & Polished rod with 0,05mm accuracy.
5,Squaring Arm and Front Support Arms
6,Germany Bosch-Rexroth Hydraulic
7,Germany EMB Tubing connector
8,Germany Siemens Main Motor
9,Tele mecanique/Schneider Electrics
10,Hydraulic &Electrical overload protection
11,Cutting Line Illumination and wire for shadow line cutting
12,Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)
Features :
- Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from the clamping cylinders along full length of machine.
2. Simplified blade gap adjustments to allow for a wide range of material types
3. Transfer balls inserted into work table allowing material to be easily moved to the cut position and squaring arm.
| No | Model | Max cut thickness
mm |
Max cut length
mm |
Ram Stroke
n/min |
Cutting angle
° |
Motor
kw |
Machine Szie
mm |
| 1 | 4×2500 | 4 | 2500 | 20-40 | 0.5-1.5 | 5.5 | 3100x1600x1700 |
| 2 | 4×3200 | 4 | 3200 | 20-40 | 0.5-1.5 | 7.5 | 3800x1800x1700 |
| 3 | 6×2500 | 6 | 2500 | 16-35 | 0.5-1.5 | 7.5 | 3150x1650x1700 |
| 4 | 6×3200 | 6 | 3200 | 14-35 | 0.5-1.5 | 7.5 | 3860x1810x1750 |
| 5 | 6×4000 | 6 | 4000 | 10-30 | 0.51.5 | 7.5 | 4630x2030x1940 |
| 6 | 6×5000 | 6 | 5000 | 10-30 | 0.5-1.5 | 11 | 5660x2050x1950 |
| 7 | 6×6000 | 6 | 6000 | 8-25 | 0.5-1.5 | 11 | 6680x2200x2500 |
| 8 | 8×2500 | 8 | 2500 | 14-30 | 0.5-1.5 | 11 | 3170x1700x1700 |
| 9 | 8×3200 | 8 | 3200 | 12-30 | 0.5-1.5 | 11 | 3870x1810x1780 |
| 10 | 8×4000 | 8 | 4000 | 10-25 | 0.5-1.5 | 11 | 4680x1900x1860 |
| 11 | 8×5000 | 8 | 5000 | 10-25 | 0.5-1.5 | 15 | 5680x2250x2200 |
| 12 | 8×6000 | 8 | 6000 | 8-20 | 0.5-1.5 | 15 | 6800x2350x2700 |
| 13 | 10×2500 | 10 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
| 14 | 10×3200 | 10 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
| 15 | 10×4000 | 10 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
| 16 | 10×5000 | 10 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
| 17 | 10×6000 | 10 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
| 18 | 12×2500 | 12 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
| 19 | 12×3200 | 12 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
| 20 | 12×4000 | 12 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
| 21 | 12×5000 | 12 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
| 22 | 12×6000 | 12 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
| 23 | 12×7000 | 12 | 7000 | 6-20 | 0.5-2.0 | 37 | 7800x2600x3200 |
| 24 | 12×8000 | 12 | 8000 | 6-20 | 0.5-2.0 | 45 | 9100x2800x3400 |
| 25 | 12×10000 | 12 | 10000 | 4-18 | 0.5-2.0 | 55 | 11100x3200x3900 |
| 26 | 12×12000 | 12 | 12000 | 4-18 | 0.5-2.0 | 2×37 | 13200x3950x4800 |
| 27 | 16×2500 | 16 | 2500 | 9-20 | 0.5-2.5 | 22 | 3320x2100x2200 |
| 28 | 16×3200 | 16 | 3200 | 8-20 | 0.5-2.5 | 22 | 4120x2150x2300 |
| 29 | 16×4000 | 16 | 4000 | 8-15 | 0.5-2.5 | 22 | 4760x1900x2560 |
| 30 | 16×5000 | 16 | 5000 | 7-15 | 0.5-2.5 | 30 | 5760x2200x2750 |
| 31 | 16×6000 | 16 | 6000 | 6-15 | 0.5-2.5 | 37 | 6880x2480x3000 |
| 32 | 16×8000 | 16 | 8000 | 5-15 | 0.5-2.5 | 55 | 9120x3000x3800 |
| 33 | 16×10000 | 16 | 10000 | 4-15 | 0.5-3.0 | 2×37 | 11200x3400x4000 |
| 34 | 16×12000 | 16 | 12000 | 3-12 | 0.5-3.0 | 2×45 | 13300x4300x5800 |
| 35 | 20×2500 | 20 | 2500 | 7-20 | 0.5-3.0 | 30 | 3300x2050x2440 |
| 36 | 20×3200 | 20 | 3200 | 6-20 | 0.5-3.0 | 30 | 4000x2160x2540 |
| 37 | 20×4000 | 20 | 4000 | 5-15 | 0.5-3.0 | 30 | 4930x2300x2710 |
| 38 | 20×5000 | 20 | 5000 | 4-15 | 0.5-3.0 | 55 | 5860x2400x3150 |
| 39 | 20×6000 | 20 | 6000 | 4-15 | 0.5-3.0 | 55 | 6100x2650x3375 |
| 40 | 20×8000 | 20 | 8000 | 4-15 | 1.0-2.5 | 2×37 | 9120x3400x3800 |
| 41 | 20×10000 | 20 | 10000 | 4-14 | 1.0-2.5 | 2×45 | 11200x4300x5800 |
| 42 | 20×12000 | 20 | 12000 | 3-12 | 1.0-2.5 | 2×55 | 13380x4500x6100 |
| 43 | 25×2500 | 25 | 2500 | 6-15 | 1.0-3.5 | 37 | 3300x2000x2650 |
| 44 | 25×3200 | 25 | 3200 | 5-15 | 1.0-3.5 | 37 | 3970x2100x2865 |
| 45 | 25×4000 | 25 | 4000 | 4-12 | 1.0-3.5 | 45 | 4780x2500x3150 |
| 46 | 25×5000 | 25 | 5000 | 4-12 | 1.5-3.5 | 55 | 6100x2880x3550 |
| 47 | 25×6000 | 25 | 6000 | 3-12 | 1.5-3.0 | 55 | 7200x3000x3850 |
| 48 | 25×8000 | 25 | 8000 | 3-12 | 1.5-3.0 | 2×37 | 9300x3500x4300 |
| 49 | 30×2500 | 30 | 2500 | 4-12 | 1.5-3.5 | 55 | 3500x2300x3200 |
| 50 | 30×3200 | 30 | 3200 | 4-12 | 1.5-3.5 | 55 | 4380x2600x3450 |
| 51 | 30×4000 | 30 | 4000 | 3-12 | 1.5-3.5 | 55 | 5300x3000x3600 |
| 52 | 30×6000 | 30 | 6000 | 3-12 | 1.5-3.0 | 2×37 | 7300x3800x4200 |
| 53 | 40×2500 | 40 | 2500 | 4-10 | 2.0-4.0 | 55 | 3900x2550x3500 |
| 54 | 40×3200 | 40 | 3200 | 3-10 | 2.0-4.0 | 55 | 4600x2900x3750 |
| 55 | 40×4000 | 40 | 4000 | 3-10 | 2.0-4.0 | 2×45 | 5380x3300x4200 |
| 56 | 50×2500 | 50 | 2500 | 3-10 | 2.0-4.0 | 2×55 | 4000x3300x4200 |
| 57 | 50×3200 | 50 | 3200 | 3-10 | 2.0-4.0 | 3×90 | 4700x3600x4500 |
| 58 | 60×3200 | 60 | 3200 | 2-8 | 2.0-4.0 | 4×90 | 4900x3800x4900 |
