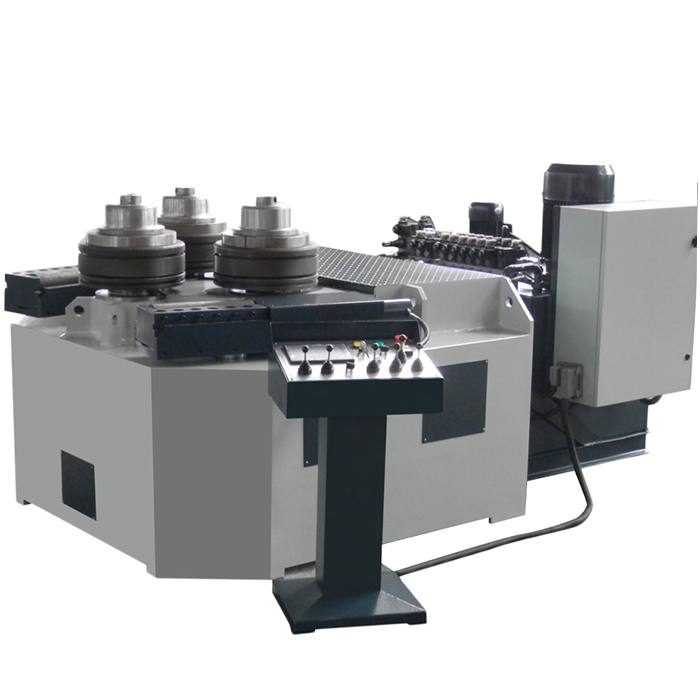

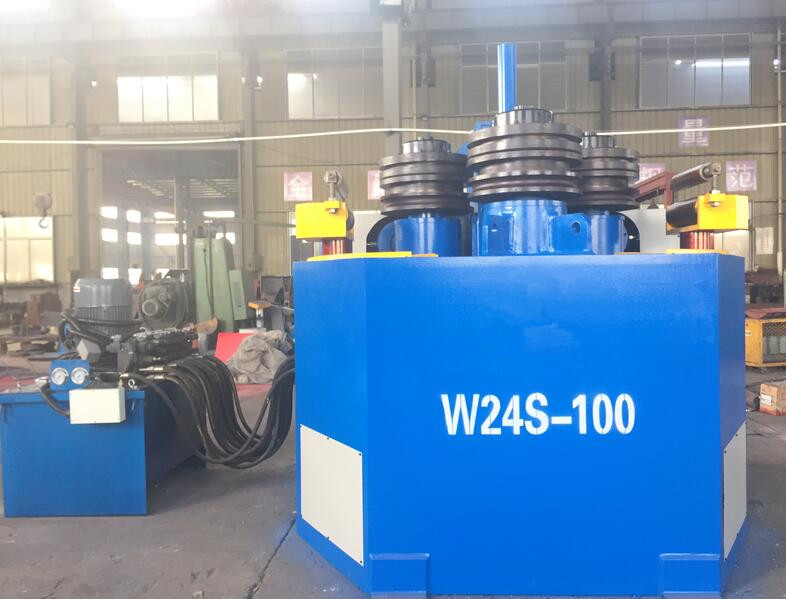

Horizantal type profile section bender machine W24s-100 full hydraulic profile bending machine
1, Specifications:
| Technical Parameter | W24S SECTION BENDING MACHINE | ||||||
| W24S-6 | W24S-16 | W24S-30 | W24S-45 | W24S-75 | W24S-100 | ||
| Maximum bending section modulus profiles | 6 | 16 | 30 | 45 | 75 | 100 | |
| Plate speed(m/min) | 6 | 5 | |||||
| Profiles yield limit(mpa) | 250 | ||||||
| Angle leg-out | maximum cross-section(mm) | 40*5 | 70*8 | 80*8 | 90*10 | 100*10 | 120*12 |
| Minimum bending diameter(mm) | 800 | 1000 | 1200 | 1500 | 2000 | 2500 | |
| Minimum cross-section(mm) | 20*3 | 30*3 | 35*3 | 36*5 | 38*4 | 40*5 | |
| Minimum bending diameter(mm) | 400 | 550 | 560 | 600 | 600 | 720 | |
| Angle leg-in | maximum cross-section(mm) | 50*5 | 80*8 | 90*10 | 100*10 | 120*12 | 140*16 |
| Minimum bending diameter(mm) | 800 | 1000 | 1100 | 1300 | 1600 | 1800 | |
| Minimum cross-section(mm) | 20*3 | 30*3 | 35*3 | 36*5 | 38*4 | 45*5 | |
| Minimum bending diameter(mm) | 400 | 550 | 500 | 600 | 700 | 760 | |
| Channel steel bent outward | Channel model | 8 | 12 | 16 | 20 | 25 | 28 |
| Minimum bending diameter(mm) | 600 | 800 | 800 | 1000 | 1100 | 1700 | |
| Within the curved channel steel | maximum cross-section(mm) | 8 | 12 | 16 | 20 | 25 | 28 |
| Minimum bending diameter(mm) | 700 | 900 | 1000 | 1150 | 1600 | 1700 | |
| Flat-along face | maximum cross-section(mm) | 100/18 | 150*25 | 180*25 | 200*30 | 220*40 | 250*40 |
| Minimum bending diameter(mm) | 600 | 700 | 800 | 900 | 1000 | 1200 | |
| Flat-along edge | maximum cross-section(mm) | 50*12 | 75*16 | 90*20 | 100*25 | 110*40 | 120*40 |
| Minimum bending diameter(mm) | 500 | 760 | 800 | 1000 | 1100 | 1300 | |
| Round tube bending | maximum cross-section(mm) | 42*4 | 76*4.5 | 89*5 | 89*8 | 114*5 | 159*5 |
| Minimum bending diameter(mm) | 500 | 750 | 900 | 900 | 1200 | 2000 | |
| Round steel bending | maximum cross-section(mm) | 38 | 52 | 62 | 75 | 85 | 90 |
| Minimum bending diameter(mm) | 450 | 600 | 600 | 800 | 1000 | 1100 | |
| Square tube bending | maximum cross-section(mm) | 45*3 | 60*4 | 70*4 | 80*6 | 90*8 | 100*10 |
| Minimum bending diameter(mm) | 750 | 900 | 1000 | 1200 | 1600 | 2000 | |
2, Standard specification:
- 1 set of standard hardened and ground rolls (special steel)
- All rolls Planetary/Gear – Hydro motor Driven
- 3-axis hardened side supports with hydraulic forward-backward movement and mechanical up-down and right-left movement
- Side supports are suitable for angle iron bending leg in -Leg Out
- Portable control panel
- Horizontal and Vertical operation
- Body constructed of stress-relieved steel
- Overload protection on hydraulic and electrical systems
- Bottom rolls hydraulically adjustable with digital readout
