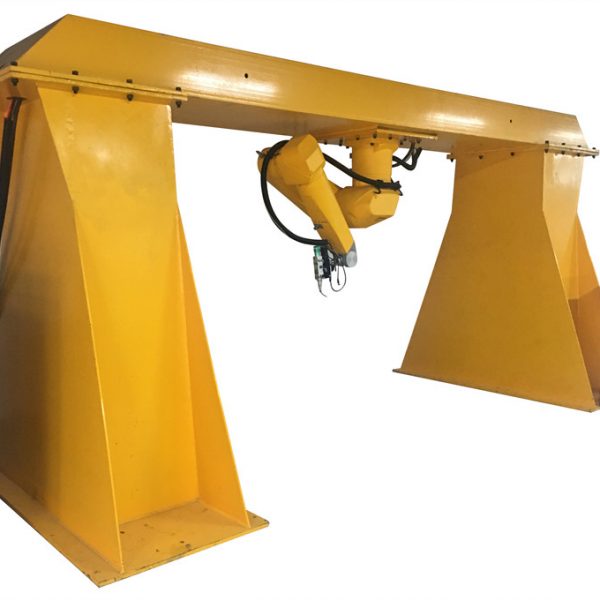

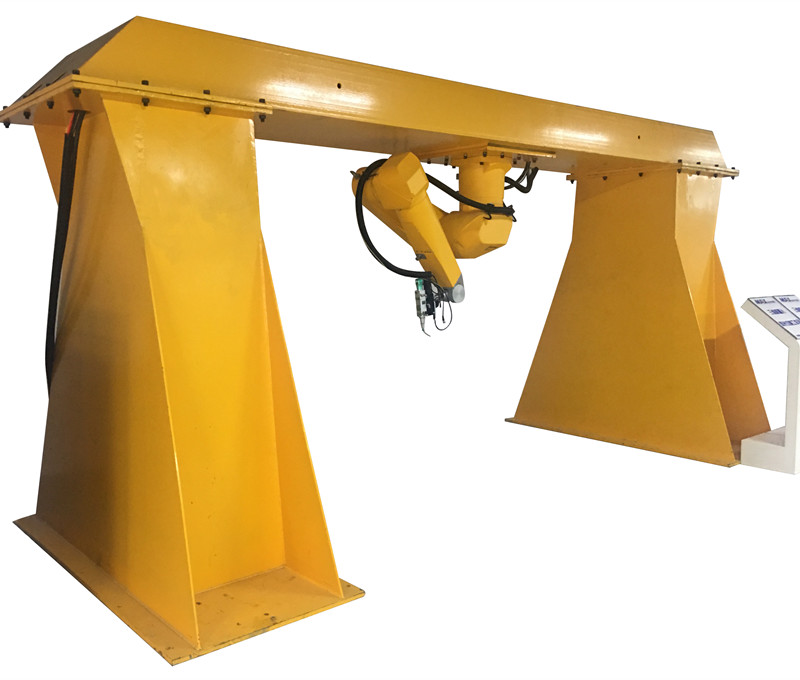

Gantry type cnc fiber laser cutting welding robot arms gantry fiber laser welding cutting robot arms
If you want to learn more information, pls email Primapress company.
Features of Gantry type cnc fiber laser cutting welding robot arms gantry fiber laser welding cutting robot arms
1. Automatic cutting method. Integrating with Sweden ABB company robot arm realize automatic and flexible cutting, greatly reducing the human error and improving cutting efficiency. The robot arm is ABB IRB 1410 (6 axis moving, the sixth axis can reach up to 1.44m).
2. Flexible cutting and easy to operation. Adopting fiber transmission cutting method make cutting more flexible and realize remote distance cutting.
3. Non-contact cutting. It gives little stress and working force on the surface of work pieces, making work pieces keep good state and having nice cutting effects.
4. Suitable for cutting large bulk work pieces.
5. Cost efficiency. The ND:YAG laser working medium makes the whole machine has lower price compared with fiber laser cutting machine.
6. Little maintenance. The whole machine just need to change some wearing parts for use. And maintenance cost is low.
7. Powerful computer system. The spot cutting method makes the whole machine can weld kind of seam, straight line, arc line, round, etc.
Technical parameter of Gantry type cnc fiber laser cutting welding robot arms gantry fiber laser welding cutting robot arms
| Specifications of 3D Robot Fiber Laser Cutting Machine | ||
| Model | PM-R2000 | |
| Laser Type | Imported Fiber Laser | |
| Laser Power | 500W/1000W/2000W | According to the material type and thickness of workpiece |
| Robot specifications | IRB2600-20-1.65 | |
| Weight bearing of arm | ≤20kg | |
| Max radius of arm span | 1650mm | |
| 2D Working Area | 3000mmX1500mm | |
| Axis1(Rotation) | 180° to -180° 175°/S | |
| Axis2(Arm) | 155° to -95° 175°/S | |
| Axis3(Arm) | 75° to -180° 175°/S | |
| Axis4(Wrist) | 400° to -400° 360°/S | |
| Axis5(Bending) | 120° to -120° 360°/S | |
| Axis1(Turn over) | 400° to -400° 360°/S | |
| Robot repetitive of positioning accuracy | ±0.04mm | |
| Cutting Speed | 0-12m/min | According to the power of the selected laser, material type and thickness of workpiece |
| Cooling Mode | air cooling/ water cooling | According to the power of the selected laser |
| Robot protection lever | IP67 | |
