Full hydraulic cnc profile bending machine automatic channel angle steel section bending machine
1, Main usage

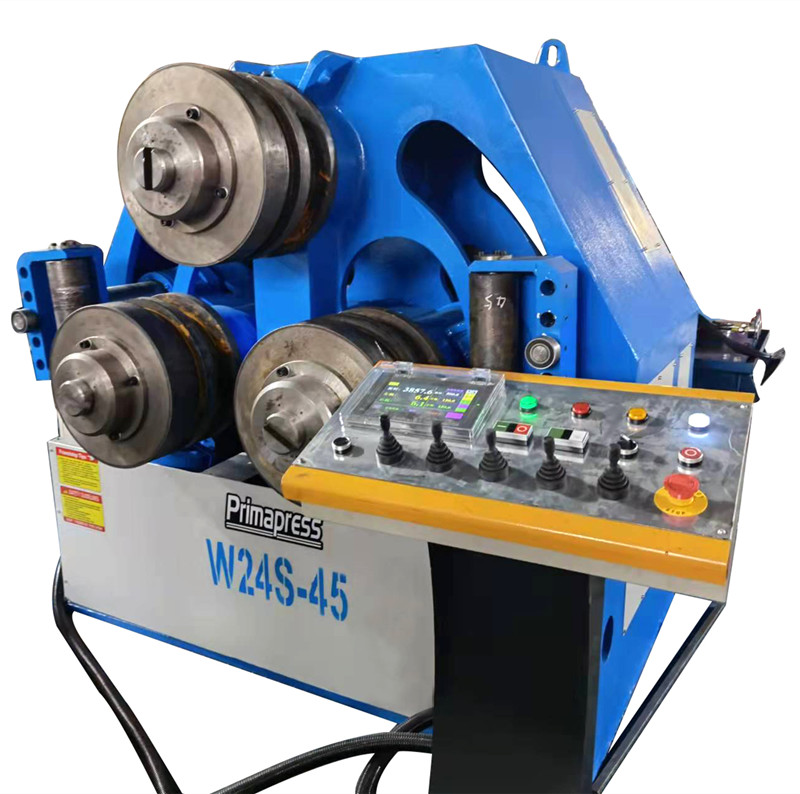

W24S-75 is hydraulic 3 roller type profile bending machine, which mainly use in various steel profile bending. It can roll “O” spiral and etc. shape workpieces. It is widely in petrol, chemical, shipyard, metal working and machine manufacturing industries.
| Technical Parameter | W24S SECTION BENDING MACHINE | ||||||
| W24S-6 | W24S-16 | W24S-30 | W24S-45 | W24S-75 | W24S-100 | ||
| Maximum bending section modulus profiles | 6 | 16 | 30 | 45 | 75 | 100 | |
| Plate speed(m/min) | 6 | 5 | |||||
| Profiles yield limit(mpa) | 250 | ||||||
| Angle leg-out | maximum cross-section(mm) | 40*5 | 70*8 | 80*8 | 90*10 | 100*10 | 120*12 |
| Minimum bending diameter(mm) | 800 | 1000 | 1200 | 1500 | 2000 | 2500 | |
| Minimum cross-section(mm) | 20*3 | 30*3 | 35*3 | 36*5 | 38*4 | 40*5 | |
| Minimum bending diameter(mm) | 400 | 550 | 560 | 600 | 600 | 720 | |
| Angle leg-in | maximum cross-section(mm) | 50*5 | 80*8 | 90*10 | 100*10 | 120*12 | 140*16 |
| Minimum bending diameter(mm) | 800 | 1000 | 1100 | 1300 | 1600 | 1800 | |
| Minimum cross-section(mm) | 20*3 | 30*3 | 35*3 | 36*5 | 38*4 | 45*5 | |
| Minimum bending diameter(mm) | 400 | 550 | 500 | 600 | 700 | 760 | |
| Channel steel bent outward | Channel model | 8 | 12 | 16 | 20 | 25 | 28 |
| Minimum bending diameter(mm) | 600 | 800 | 800 | 1000 | 1100 | 1700 | |
| Within the curved channel steel | maximum cross-section(mm) | 8 | 12 | 16 | 20 | 25 | 28 |
| Minimum bending diameter(mm) | 700 | 900 | 1000 | 1150 | 1600 | 1700 | |
| Flat-along face | maximum cross-section(mm) | 100/18 | 150*25 | 180*25 | 200*30 | 220*40 | 250*40 |
| Minimum bending diameter(mm) | 600 | 700 | 800 | 900 | 1000 | 1200 | |
| Flat-along edge | maximum cross-section(mm) | 50*12 | 75*16 | 90*20 | 100*25 | 110*40 | 120*40 |
| Minimum bending diameter(mm) | 500 | 760 | 800 | 1000 | 1100 | 1300 | |
| Round tube bending | maximum cross-section(mm) | 42*4 | 76*4.5 | 89*5 | 89*8 | 114*5 | 159*5 |
| Minimum bending diameter(mm) | 500 | 750 | 900 | 900 | 1200 | 2000 | |
| Round steel bending | maximum cross-section(mm) | 38 | 52 | 62 | 75 | 85 | 90 |
| Minimum bending diameter(mm) | 450 | 600 | 600 | 800 | 1000 | 1100 | |
| Square tube bending | maximum cross-section(mm) | 45*3 | 60*4 | 70*4 | 80*6 | 90*8 | 100*10 |
| Minimum bending diameter(mm) | 750 | 900 | 1000 | 1200 | 1600 | 2000 | |
2.Technical Parameters
| No. | Technical Data | W24S-75 W24S 45 |
| 1 | Max. Bending resistant modulus | 75CM3 |
| 2 | Yield limit | 245Mpa |
| 3 | Down roller speed | 180mm/ min |
| 4 | Up axis diameter | Ф 180 mm |
| 5 | Down axis diameter | Ф 170 mm |
| 6 | Mold diameter | Ф 420 mm |
| 7 | Bending speed | 5m/min |
| 8 | Electrical elements | Siemens, Germany |
| 9 | Hydraulic pressure | 19.5Mpa |
| 10 | Hydraulic elements | Yuken, Japan |
| 11 | Sealing | Valqua, Japan |
| 12 | PLC | Omron,Japan |
| 13 | LCD display | Touchwin, China |
| 14 | Motor power | 15KW |
3.Main structure of machine Full hydraulic cnc profile bending machine automatic channel angle steel section bending machine
W24S-75 has machine body, side roller part, support roller part, electrical system, and hydraulic system.
Machine body is a whole welded structure, the left and right running arms are installed in machine body, which drove by two hydraulic pumps, and do arc up and down movements. Support rollers are installed on two head of machine body, which can turn to various angles to suit for kinds of profile bending.
4.Function, working process and working field
4.1 Machine function Full hydraulic cnc profile bending machine automatic channel angle steel section bending machine
Three rollers are main drove, can do the pre-bending, through adjusting the guide rollers, it is easy to correct the deformation from the bending process.
4.2 Working process
It can do pre-bending, and its process shown as following:
4.3 Working field Full hydraulic cnc profile bending machine automatic channel angle steel section bending machine
The main parameters on form means the max. bending capacity with best working efficiency. If other steel profile like square, angle, only if the bending resistant modulus less than 75 cm3, then it is available to finish bending on this W24S-75
