Description

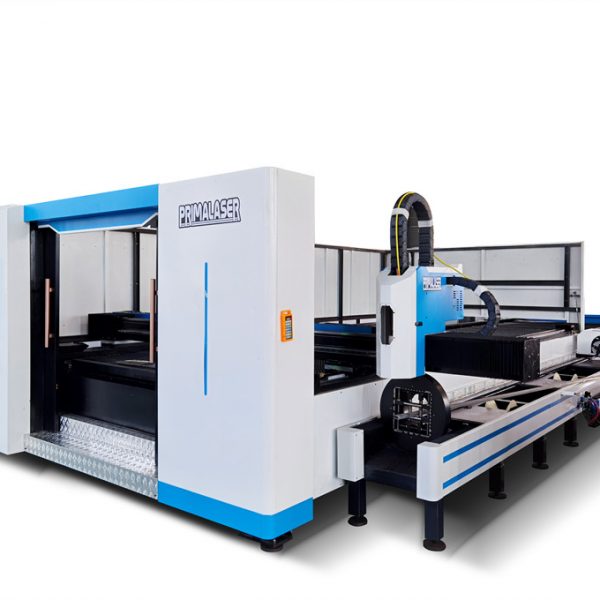

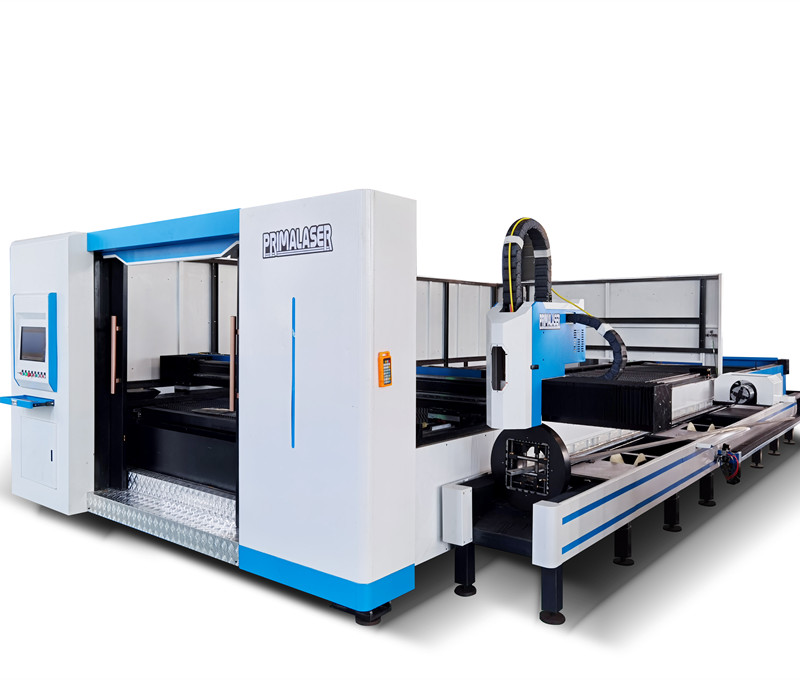

Full cover Exchangeable fiber laser cutting machine 4000x1500mm with pipe cutting
Video link:
Technical sheets: 1000W fiber laser cutting machine adopts IPG or Raycus fiber laser device which has international advanced laser technology. With Germany imported Precitec or other Raytools brand laser cutting head. Equipped with efficient transmission system by Taiwan high-precision gear rack after grinding process and high-precision linear guide. Advanced automatic CNC system, group into high precised CNC fiber laser cutting machine.
Mainly applicable for carbon steel, stainless steel and aluminum alloy etc such metals’ cutting and molding.With advantage of High speed, High precision, High efficiency and High cost performance. This model is metal processing industry’s first considering metal cutting machine.
Suitable for aerospace technology, aircraft manufacturing, rocket manufacturing, robot manufacturing, elevator manufacturing, ship manufacturing, sheet metal cutting, kitchen furniture, electronic components, automotive parts, cooling, and ventilation pipes, signs, metal and other metal parts processing industry.
Components:
Japanese YASKAWA servo motors system
Germany ATLANTA gears
Taiwan TBI ball screw drive
Japan SMC /Airtac pneumatic parts
French Schneider electronic parts
French Motoreducer reducer
WSX or Raytools laser head
Integrated cast aluminum beam
Taiwan HIWIN square rail
Smoke purify system
Water cooling machine Hanli
Three years warranty
3year (the laser generator 2 years)
5150*2225*2125mm
Standard wooden case for international trading
Parameters:
| Machine Model | PMFiber-4020 |
| Max. working area | 2000mm x 4000mm |
| Laser | Raycus 2000 watt fiber laser |
| Cutting thickness | 0.1-16 mm/metals |
| Pipe length | 0.1-6meters |
| Pipe diameter | 20-200mm(if bigger, we can design specially)
(can load square , round, rectangle pipe, and so on ) |
| Laser wavelength | 1080 nm |
| Rated power | 10-100% |
| Water chiller power | 5.6 Kw |
| X,Y-axis location accuracy | 0.01mm |
| X,Y-axis repeat location accuracy | 0.01mm |
| X,Y-axis fast moving speed | 80 m/min |
| X,Y-axis max. cutting speed | 45 m/min |
| Min. cutting line width | 0.02-0.08 mm |
| Max. cutting speed | 45 m/min |
| Machine occupy space | 8.5 m x 3 m |
| Machine weight | 8500 KG |
| Voltage | 380 V or optional to site |
