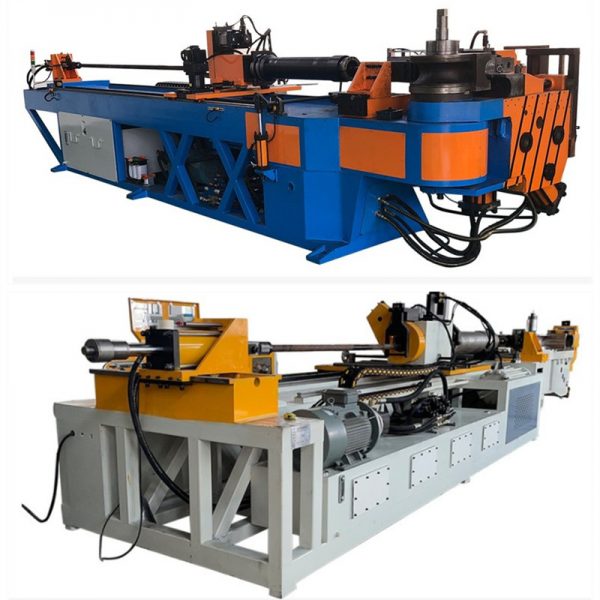

DW75CNC-2A1S Stainless Steel tube Hydraulic Automatic CNC Pipe Bending Machine Tube Bender machine
Brief Introduction on Pipe Bending Machine
Full-automatic pipe bending machine equipped with PLC or IPC which manage Bending (Y), Feeding (X) & Rotation (Z) in a complete automatic cycle.
Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
Feeding (X-Axis): Controlled by Servomotor.
Rotating (Z-Axis): Controlled by Servomotor.
We only use popular quality components in the production of our benders from such companies as JAPAN MITSUBISHI,TAIWAN WEINVIEW,
JAPAN YUKEN,JAPAN NEIMICOM,SKF AND ETC…
This value priced CNC Tube Bending Machine is an excellent choice for general purpose and any type of conventional tube bending applications.
Technical features:
1. Bending Servo Motor-Bending controlled by electric. We can make pipe bending machine that bending controlled by hydraulic or electric which based on your requirement.—–pipe tube bender | bending machine
2.Tooling Set-The whole tooling set including: Bending die,Clamp die,Pressure Die,Collet(CNC),Mandrel(optional),Wiper die(optional).—–pipe tube bender | bending machine
3. Safety Board-If any people standard there that touch the bending arm,the pipe tube bending machine will automatically stop for guarantee the workers safety.—–pipe tube bender | bending machine
4. Touch Screen: Machine operation through touch screen. You can input all the bending datas into touch screen, PLC received touch screen program, machine will working accordingly based on each requirement.—–pipe tube bender | bending machine
5. Feeding Servo Motor-Feeding the pipe forward or backward by electric. Feeding pipe can only controlled by servomotor for guarntee the pipe feeding accuracy,finally for guarantee the pipe bending accuracy.—–pipe tube bender | bending machine
6. Feeding dolly(collet): This feeding dolly with function of feeding pipe forward and backward,turning pipe with different angles and clamp tight the pipe. It is a very important device for a CNC pipe bending machine.—–pipe tube bender | bending machine
7. Cooling system-It is a fan cooling system. Water cooling system and fan cooling system both are availble for you. Different cooling system choosen on your tube bending machine based on your own situation and condition.—–pipe tube bender | bending machine
8. Hydraulic system cabniet- Inside of this cabniet installed with all hydraulic system for controlling the whole hydraulic working.—–pipe tube bender | bending machine
9. Rotating Servo Motor-Rotating the pipe in different angles to realize the 3D pipe bending. Pipe turning can only controlled by servomotor for guarntee the pipe turning accuracy,finally for guarantee the pipe bending accuracy.—–pipe tube bender | bending machine
10. Safety Mat-It is a optional device. This safety mat is to protect the workers safety when they doing bending work. When people stand on safety mat,machine will immediately stop woring.—–pipe tube bender | bending machine
11. Emergency stop-Any emergencies occurs, you can touch this button to stop machine or stop pipe bending.—–pipe tube bender | bending machine
12. Machine head shifting- Multi-stacks pipe bending machine with function of machine head stacks shifting automatically.If one pipe with different bending radius,multi stacks CNC pipe bending machine is suitable for your bending. Tooling stacks shifting can be controlly by hydraulic or electric(servo motor) which based on your requirement and budget.—–pipe tube bender | bending machine
13. Tooling demouding-Multi-stacks pipe tube bending machine with function of multi stacks tooling demoulding before machine head shifting.If one pipe with different bending radius,multi stacks CNC pipe bending machine is suitable for your bending. Tooling demoulding can be controlly by hydraulic or electric(servo motor) which based on your requirement and budget.—–pipe tube bender | bending machine
14. Electric Cabniet-Inside of this cabniet installed with all electric parts and controlling system for controlling the whole electric working.—–pipe tube bender | bending machine
Features on Pipe Bending Machine
- Interactive PLC touch screen offers easy access to auto and manual operating modes…-(Pipe Curving Folding Machine)
- System diagnostics and multiple language capability…-(Pipe Curving Folding Machine)
- Standard clockwise bending direction…-(Pipe Curving Folding Machine)
- Fully hydraulic clamping on clamp die and pressure die.—–(Pipe Curving Folding Machine)
- Drop-way hydraulic clamping.——(Pipe Curving Folding Machine)
- Direct acting hydraulic pressure die with adjustable speed valve.–(Pipe Curving Folding)
- Maximum 100 sets of program storage,Maximum 32 bends for each program.
- With Independent programmable speeds Y, B, and C axes.—(Pipe Curving Folding Machine)
- Programmable material spring back settings for each bend angle.—(Pipe Curving Folding Machine)
- Automatic release of tube prior to final bend.–(Pipe Curving Folding Machine)
- Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.—(Pipe Curving Folding Machine)
- Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.—(Pipe Curving Folding Machine)
- Foot Pedal Cycle start.–(Pipe Curving Folding Machine)
- With Air Cooling System or water cooling system.—-(Pipe Curving Folding Machine)
- One set of Tooling for Draw Bending.–(Pipe Curving Folding Machine)
- Wiper die Bracket.–(Pipe Curving Folding Machine)
- 1 Mandrel Rod.—(Pipe Curving Folding Machine)
- Operation and Maintenance Manual.—(Pipe Curving Folding Machine)
- Tool Box with Adjusted Tools.—(Pipe Curving Folding Machine)
- Electric: As required (3 phase 220V or 380V or 415V…)—-(Pipe Curving Folding Machine)
Optional
- Industrial Computer Controlling———————-(Pipe Curving Folding Machine)
- Anticipate Mandrel Extraction————————(Pipe Curving Folding Machine)
- Automatic mandrel/machine lubrication————(Pipe Curving Folding Machine)
- Anti-clockwise bending direction———————(Pipe Curving Folding Machine)
- Machine effective length over mandrel —————-(Pipe Curving Folding Machine)
- Safety Mat————————————————–(Pipe Curving Folding Machine)technical parameter for choice:
Model DW18CNC-2A1S DW25CNC-2A1S DW38CNC-2A1S DW50CNC-2A1S DW63CNC-2A1S DW75CNC-2A1S DW89CNC-2A1S DW114CNC-2A1S Maximum pipe diameter × wall thickness Φ19×1.5 Φ25×1.8 Φ38×2.0 Φ51×2.0 Φ63×2.5 Φ76×3.0 Φ89×3.0 Φ114×8.0 Standard feeding distance 1200mm 1800mm 2200mm 2500mm 2500mm 2600mm 3200mm 3600mm Feed type Straight feeding or jig Straight feeding or jig Straight feeding or jig Straight feeding or jig Straight feeding or jig Straight feeding or jig Straight feeding or jig Straight feeding or jig Maximum bending radius 90mm 120mm 175mm 200mm 250mm 300mm 350mm 400mm Maximum angel of bending 185° 185° 185° 185° 185° 185° 185° 185° Numbers of single pipe bends 16 16 16 16 16 16 16 16 Numbers of parts saved 400sets 400sets 400sets 400sets 400sets 400sets 400sets 400sets Rotation pace Max.270°/s Max.270°/s Max.270°/s Max.270°/s Max.270°/s Max.180°/s Max.180°/s Max.180°/s Feeding pace Max.1000mm/s Max.1000mm/s Max.900mm/s Max.900mm/s Max.900mm/s Max.700mm/s Max.700mm/s Max.700mm/s Rotation accuracy ±0.15° ±0.15° ±0.15° ±0.15° ±0.15° ±0.15° ±0.15° ±0.15° Feeding accuracy ±0.1mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm Rotation servo power 400W 400W 400W 750W 750W 1KW 1KW 1.5W Feeding servo power 750W 1KW 1KW 1KW 1.5W 2KW 2KW 3.5W Oil pressure motor power 3KW 3KW 4KW 5.5KW 5.5KW 7.5KW 11KW 15KW Total weight 1200KG 1350KG 2000KG 2500KG 2800KG 3600KG 4000KG 5000KG boundary dimension(mm) 2760×690×1000 3000×780×1100 3400×780×1160 4200×850×1160 4300×850×1160 5700×1080×1400
