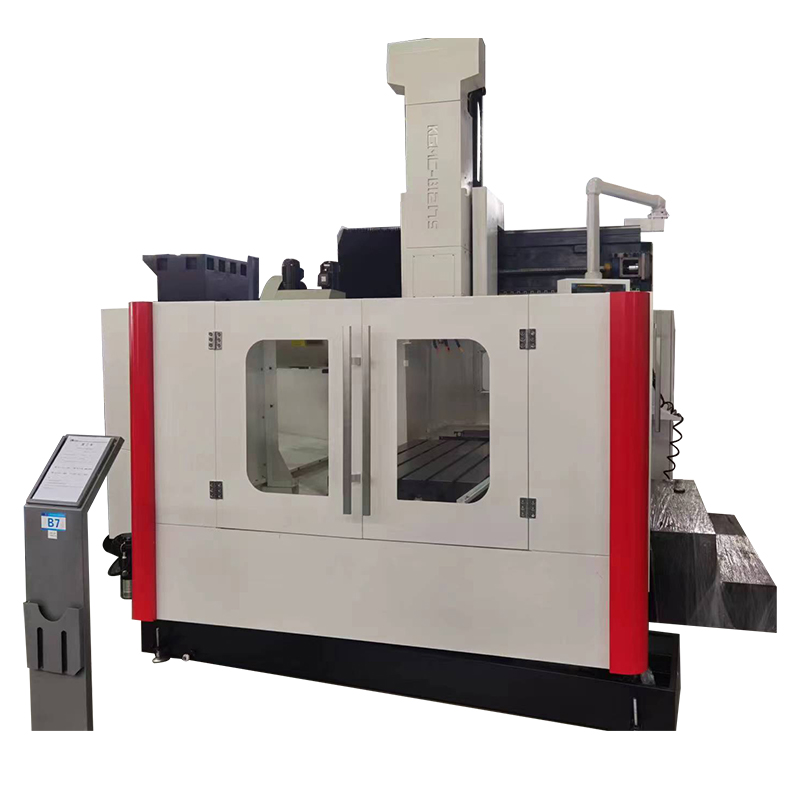

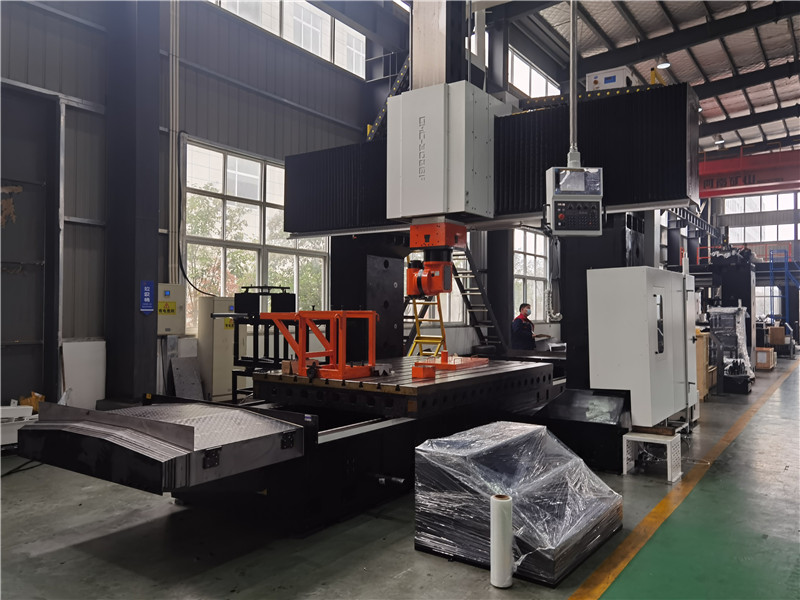

Double Column GMC Cnc Gantry Milling Machine Manufacturer 5 Axis Gantry Type Machining Center
Gantry machining center is mainly used for machining steel parts, steel castings, iron castings and other workpieces such as CNC milling, boring, drilling, tapping, etc. The machine tool uses accessory heads to realize various types of disks, plates, and shells. Complicated parts such as, molds, etc. complete five-sided processing of multiple processes in one clamping.
Heavy Duty Gantry Milling Machine 1.This series of CNC fixed beam gantry boring and milling machines are equipped woth high rigid large torque spindle and high dynamic response drive system, which are easy to operate, flexible, safe and reliable, and can be widely used in aviation, aerospace, rail transit, automobile, mold and other machining fields. 2.The machine adopts high rigid gantry frame structure, and the important parts are resin sand castings, and through two artificial aging treatment, has enoughh static and dynamic rigidity and good precision retention. 3.The X/Y acis adopts heavy-duty linear guide rail(ball ball) structure, the Z axis adopts rectangular hard rail structure, and the Z axis is equipped with a diazo liquid balance cylinder, with small motion inertia and fast response speed. 4.Machine spindle adopts Taiwan high rigid spindle unit, long service life, high reliability, can choose gear head drive or spindle motor direct drive structure.

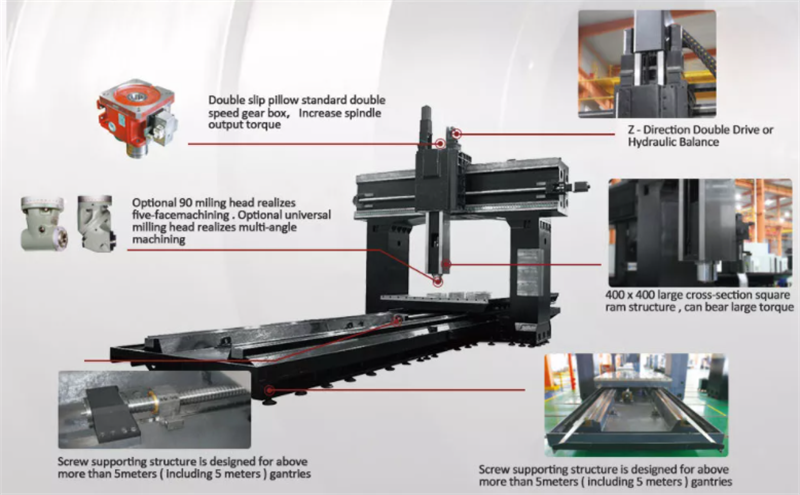

Double Column Machining Center 1. Optional grating ruler for closed-loop control. 2. More than 5 meters (including 5 meters) gantry equipped with screw support structure. 3. Z-direction double drive or hydraulic balance. 4. Large section square sliding pillow structure (optional), can bear large torque. 5. Gantry machine center are standard with two longitudinal spiral chip eliminator and a transverse chain plate chip eliminato. 6. Square sliding pillow standard with double speed gear box, increase the spindle output torque. Specification
|
Machine Type
|
Unit
|
GMC4032
|
|
Worktable
|
||
|
Worktable (length×width)
|
mm
|
4000*2500
|
|
Maximun Load of table
|
kg
|
18000
|
|
T-slot
|
mm
|
13-22*200
|
|
Processing scope
|
||
|
Gantry width
|
mm
|
3200
|
|
Travel for X/Y/Z axis
|
mm
|
4200*4000*1000
|
|
Distance from spindle nose to table surface
|
mm
|
105-1105
|
|
Drive feed
|
||
|
Fast feed speed（ X/Y/Z）
|
m/min
|
12/15/10
|
|
Precision
|
||
|
Positioning accuracy（ X/Y/Z）
|
mm
|
0.02/0.02/0.016
|
|
Repeated Positioning accuracy（ X/Y/Z）
|
mm
|
0.012/0.012/0.012
|
|
Spindle
|
||
|
AC Head
|
Kessler
|
|
|
Maximum spindle speed
|
r.p.m
|
18000
|
|
Spindle taper
|
HSK-A63
|
|
|
A-axis swing angle
|
±105°
|
|
|
C-axis swing angle
|
±360°
|
|
|
Spindle motor
|
kw
|
S1:56,S6:70
|
|
Max.torque of spindle
|
Nm
|
S1:90,S6:110
|
|
Others
|
||
|
Voltage
|
kva
|
92
|
|
weight
|
kg
|
52000
|
|
Floor area (length*width*height)
|
mm
|
9840*7090*5467
|
Heavy Duty Gantry Milling Machine 1.This series of CNC fixed beam gantry boring and milling machines are equipped woth high rigid large torque spindle and high dynamic response drive system, which are easy to operate, flexible, safe and reliable, and can be widely used in aviation, aerospace, rail transit, automobile, mold and other machining fields. 2.The machine adopts high rigid gantry frame structure, and the important parts are resin sand castings, and through two artificial aging treatment, has enoughh static and dynamic rigidity and good precision retention. 3.The X/Y acis adopts heavy-duty linear guide rail(ball ball) structure, the Z axis adopts rectangular hard rail structure, and the Z axis is equipped with a diazo liquid balance cylinder, with small motion inertia and fast response speed. 4.Machine spindle adopts Taiwan high rigid spindle unit, long service life, high reliability, can choose gear head drive or spindle motor direct drive structure.
