Description

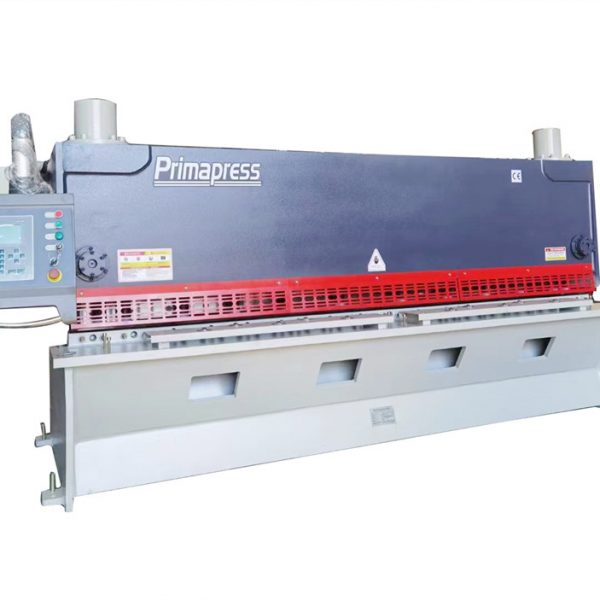

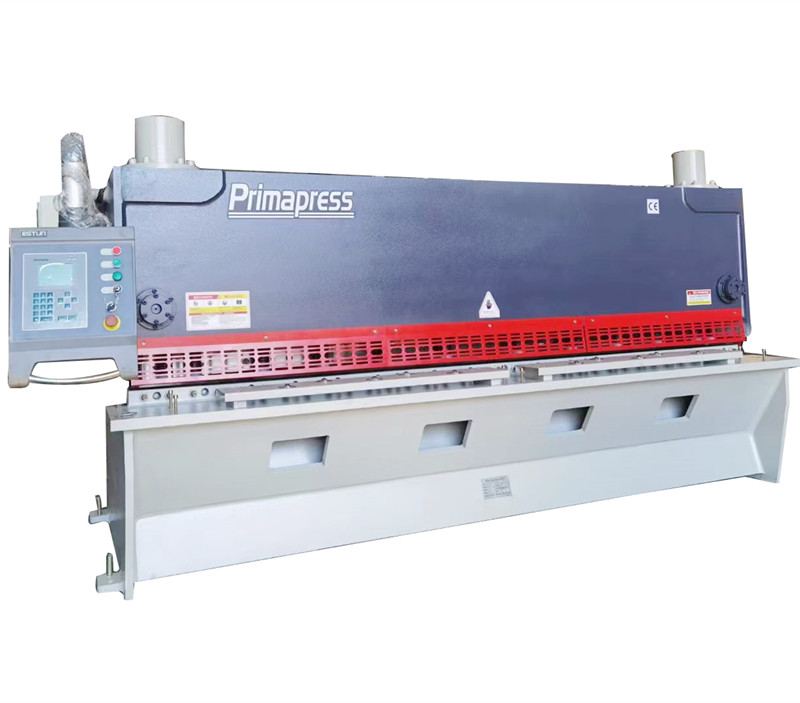

Delem DAC360 CNC Hydraulic guillotine shearing machine guillotine shear machine 12x3200mm

this is Primapress newly finished Delem DAC360 CNC Hydraulic guillotine shearing machine guillotine shear machine 12x3200mm .

it has the blade edge automatic adjustment function and can limit the cutting length by the DELEM DAC360.

and the worker can input the thickness and length for cutting , so it can give the best cutting pressure , to save the using power.

this hydraulic guillotine shearing machine can cut 12mm thickness by length 3200mm length .

the sheet metal guillotine shear machine backgauge is also automatic controlled .

this customer is from Ukraine, it is a big steel factory company, so they purchased this full cnc hydraulic guillotine shearing machine.

1,Technical specification

No	Model	Max cut thicknessmm	Max cut lengthmm	Ram Stroken/min	Cutting angle°	Motorkw	Machine Sziemm
1	4×2500	4	2500	20-40	0.5-1.5	5.5	3100x1600x1700
2	4×3200	4	3200	20-40	0.5-1.5	7.5	3800x1800x1700
3	6×2500	6	2500	16-35	0.5-1.5	7.5	3150x1650x1700
4	6×3200	6	3200	14-35	0.5-1.5	7.5	3860x1810x1750
5	6×4000	6	4000	10-30	0.51.5	7.5	4630x2030x1940
6	6×5000	6	5000	10-30	0.5-1.5	11	5660x2050x1950
7	6×6000	6	6000	8-25	0.5-1.5	11	6680x2200x2500
8	8×2500	8	2500	14-30	0.5-1.5	11	3170x1700x1700
9	8×3200	8	3200	12-30	0.5-1.5	11	3870x1810x1780
10	8×4000	8	4000	10-25	0.5-1.5	11	4680x1900x1860
11	8×5000	8	5000	10-25	0.5-1.5	15	5680x2250x2200
12	8×6000	8	6000	8-20	0.5-1.5	15	6800x2350x2700
13	10×2500	10	2500	10-25	0.5-2.0	15	3270x1730x1800
14	10×3200	10	3200	9-25	0.5-2.0	15	3990x2250x2200
15	10×4000	10	4000	6-20	0.5-2.0	15	4720x2490x2500
16	10×5000	10	5000	7-20	0.5-2.0	22	5720x2600x2800
17	10×6000	10	6000	6-20	0.5-2.0	30	6720x2500x2550
18	12×2500	12	2500	10-25	0.5-2.0	15	3270x1730x1800
19	12×3200	12	3200	9-25	0.5-2.0	15	3990x2250x2200
20	12×4000	12	4000	6-20	0.5-2.0	15	4720x2490x2500
21	12×5000	12	5000	7-20	0.5-2.0	22	5720x2600x2800
22	12×6000	12	6000	6-20	0.5-2.0	30	6720x2500x2550
23	12×7000	12	7000	6-20	0.5-2.0	37	7800x2600x3200
24	12×8000	12	8000	6-20	0.5-2.0	45	9100x2800x3400
25	12×10000	12	10000	4-18	0.5-2.0	55	11100x3200x3900
26	12×12000	12	12000	4-18	0.5-2.0	2×37	13200x3950x4800
27	16×2500	16	2500	9-20	0.5-2.5	22	3320x2100x2200
28	16×3200	16	3200	8-20	0.5-2.5	22	4120x2150x2300
29	16×4000	16	4000	8-15	0.5-2.5	22	4760x1900x2560
30	16×5000	16	5000	7-15	0.5-2.5	30	5760x2200x2750
31	16×6000	16	6000	6-15	0.5-2.5	37	6880x2480x3000
32	16×8000	16	8000	5-15	0.5-2.5	55	9120x3000x3800
33	16×10000	16	10000	4-15	0.5-3.0	2×37	11200x3400x4000
34	16×12000	16	12000	3-12	0.5-3.0	2×45	13300x4300x5800
35	20×2500	20	2500	7-20	0.5-3.0	30	3300x2050x2440
36	20×3200	20	3200	6-20	0.5-3.0	30	4000x2160x2540
37	20×4000	20	4000	5-15	0.5-3.0	30	4930x2300x2710
38	20×5000	20	5000	4-15	0.5-3.0	55	5860x2400x3150
39	20×6000	20	6000	4-15	0.5-3.0	55	6100x2650x3375
40	20×8000	20	8000	4-15	1.0-2.5	2×37	9120x3400x3800
41	20×10000	20	10000	4-14	1.0-2.5	2×45	11200x4300x5800
42	20×12000	20	12000	3-12	1.0-2.5	2×55	13380x4500x6100
43	25×2500	25	2500	6-15	1.0-3.5	37	3300x2000x2650
44	25×3200	25	3200	5-15	1.0-3.5	37	3970x2100x2865
45	25×4000	25	4000	4-12	1.0-3.5	45	4780x2500x3150
46	25×5000	25	5000	4-12	1.5-3.5	55	6100x2880x3550
47	25×6000	25	6000	3-12	1.5-3.0	55	7200x3000x3850
48	25×8000	25	8000	3-12	1.5-3.0	2×37	9300x3500x4300
49	30×2500	30	2500	4-12	1.5-3.5	55	3500x2300x3200
50	30×3200	30	3200	4-12	1.5-3.5	55	4380x2600x3450
51	30×4000	30	4000	3-12	1.5-3.5	55	5300x3000x3600
52	30×6000	30	6000	3-12	1.5-3.0	2×37	7300x3800x4200
53	40×2500	40	2500	4-10	2.0-4.0	55	3900x2550x3500
54	40×3200	40	3200	3-10	2.0-4.0	55	4600x2900x3750
55	40×4000	40	4000	3-10	2.0-4.0	2×45	5380x3300x4200
56	50×2500	50	2500	3-10	2.0-4.0	2×55	4000x3300x4200
57	50×3200	50	3200	3-10	2.0-4.0	3×90	4700x3600x4500
58	60×3200	60	3200	2-8	2.0-4.0	4×90	4900x3800x4900
