Description

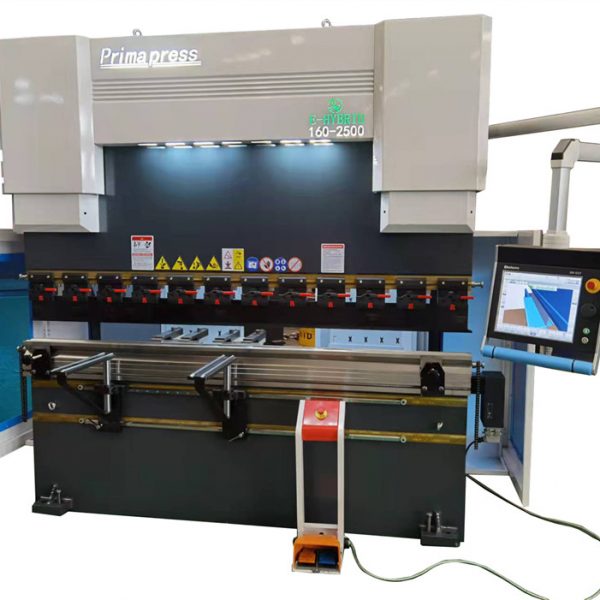

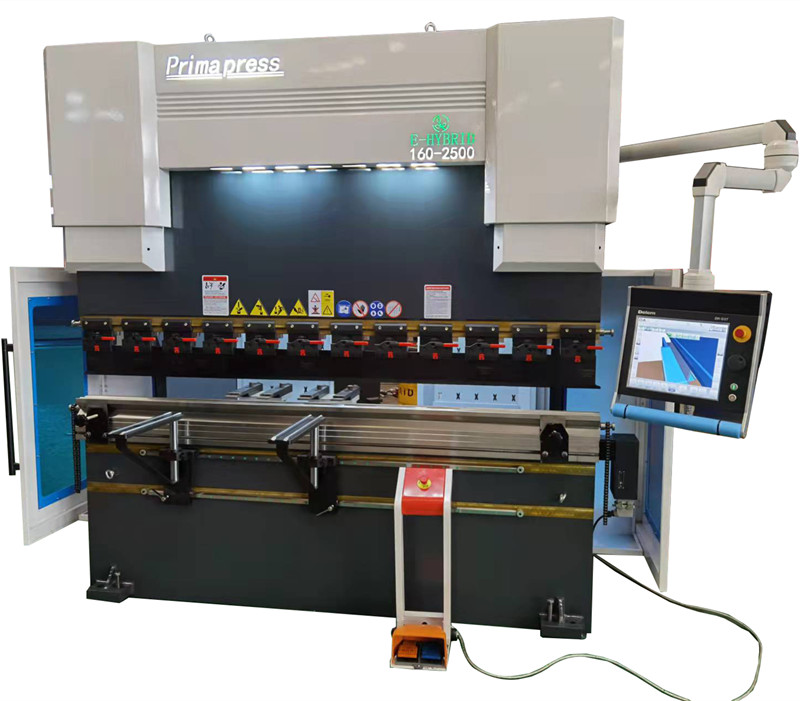

DA66T aluminum iron plate 8+1 axis CNC servo hybrid hydraulic press brake bending machine
DA66T aluminum iron plate 8+1 axis CNC servo hybrid hydraulic press brake bending machine technical features:
1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment
2. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth,
Germany.
3. Electro-hydraulic servo CNC, Y1, Y2,for Oil cylinder stroke X, R for back gauge , Z1,Z2 for back gauge fingers, V for Hydraulic
compensation. 6 + 1 axis
4. The stroke and distance of the back gauge is adjusted by the motor and is well adjusted by hand, the adjustment is displayed by DA66T.
5. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
6. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety
DA66T aluminum iron plate 8+1 axis CNC servo hybrid hydraulic press brake bending machine Components list:
√ CNC Axis Control : 3+1 (Y1-Y2-X+V ) 4+1 (Y1 -Y2- X-R + V ) & 6+1 (Y1-Y2-X-R-Z1-Z2+V)

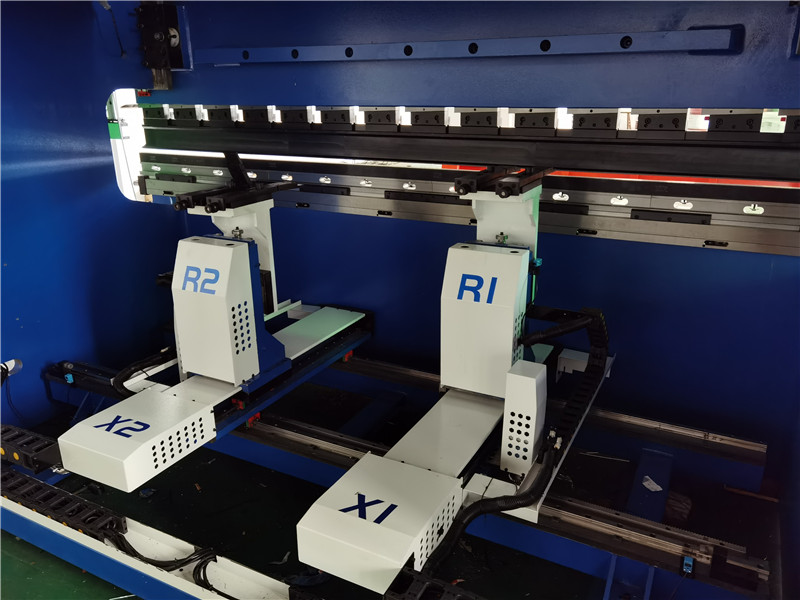

8+1 ( Y1-Y2-X1-X2-R1-R2+V)
√ Hydraulic Valve: BOSH-Rexroth
√ Oil Pump: BOSH-Rexroth
√ Oil Cylinder: CHINA famous brand
√ Main Motor: Estun Servo Motor & Siemens Normal Motor;
√ Linear Encoder: Fagor & Heidenhain
√ Crowning: Motorized Crowning & Hydraulic Cylinders & Manual
√ Pedal Switch: CHINA famou brand
√ Electrics: Schneider
√ Clamps: WILA Hydraulic Clamping & KMechanical fast Clamp
√ Ball Screw Rod: TAIWAN HIWIN
√ Linear Guide: TAIWAN HIWIN
√ Front Support: Support with Dual Linear Guide & Following Supports Systems
√ Tooling: WILA Tooling & China Famous Brand tooling & Customized
√ Backgauge Motor: Estun Servo Motor
√ Finger Amount: 2/3/4/6 & Customized
√ Front | Back Safe Protection: DSP Laser & Light Curtain Protection
√ Metal Protection: Rear & Back
√ Controller: Delem DA69T & DA66T & DA56S & DA52S & ESA -S540 & Customized
DA66T aluminum iron plate 8+1 axis CNC servo hybrid hydraulic press brake bending machine
