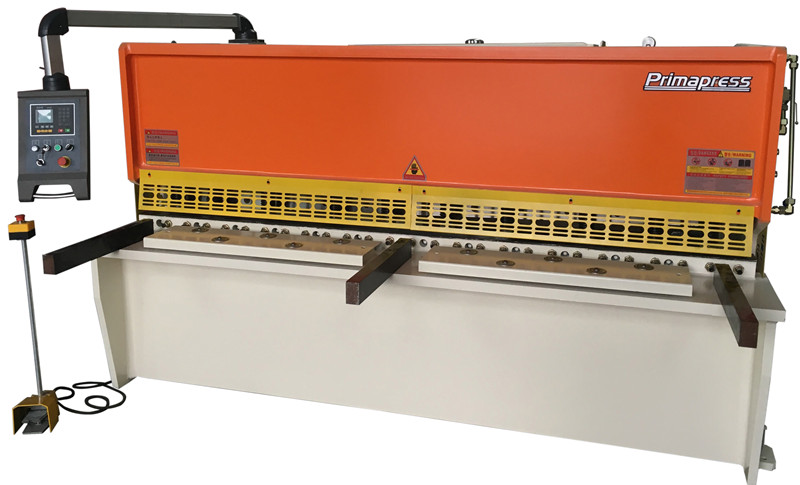

Hydraulic Swing Beam Metal shearing machine

Video link :

https://youtu.be/hTfw-1hFcYo

https://youtu.be/STsOVh8hoLk

Main features:

Main Features:

1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2.Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany,

3.The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity.

4.The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter.

5.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.

6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.

2. Standard Equipment:

• Estun E21sNC controlSystem
• PoweredBack gaugeX-axis
• DELTAInvertercontrolled back gauge
• HIWIN Ball screws & Polished rodwith 0,05mm accuracy.
• Squaring Arm and Front Support Arms
• Germany Bosch-Rexroth Hydraulic
• Germany EMB Tubing connector
• Germany Siemens Main Motor
• Telemecanique/SchneiderElectrics
• Hydraulic &Electrical overload protection
• Cutting Line Illumination and wire for shadow line cutting
• Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)

3. Safety Equipment:

• Safety Standards(2006/42/EC):1.EN 12622:2009 + A1:2013     2.EN ISO 12100:2010     3.EN 60204-1:2006+A1:2009

• Front finger Protection(Safety light curtain)
• South Korea Kacon Foot Switch(Level 4 of safety)
• Back metal safe fencewith CE standards
• Safety relay with Monitor the pedal switch and safety protection4,Main Configuration：


  Serial No.	Part Description	Brief instruction/ Orignal		Other
  1-	NC Control system	■E21s NC System□E10s NC System
  2-	Electrical components	Schneider Electrical from French		Travel switch & Limit switch
  3-	Main Motor	Siemens from Germany Brand
  4-	BackGauge & RAM Drive	Inverter from Taiwan delta		Accurate positioning control
  5-	Foot switch	KACON from South Korea
  6-	Hydraulic System	Bosch-Rexroth form Germany
  Sealing Element		PARKER from U.S.A Brand
  7-	Tubing connector	EMB form Germany Brand
  8-	Ball screw/ Polished rod	HIWIN from TaiWan Brand
  2.Equipment
  1-	Pneumatic sheet support system			□Yes■No
  2-	Rear sheet sliding plates			■Yes □No		Fixed type(metal)
  3-	Angle Gauge			□Yes■No
  4-	Squaring Arm(800mm)			■Yes □No
  5-	Inverter accurate control			■Yes □No
  6-	Light curtains for finger Protection			□Yes■No		Reset button
  7-	Back safety Sensors			□Yes■No
  8-	Back metal fence Safety			■Yes □No
  9-	Safety standards			■CE    □CSA    □NR-12    □OSHA

  5,Main specifications:

1, photoelectric conversion efficiency can reach 30%, two times that of CO2;

2, less consumption of power source, CO2 is 20% ~ 30%;

3, no laser working gas, can save a lot of laser maintenance cost;

4, optical fiber transmission, without reflection lens, do not need to adjust the light path.
