Description

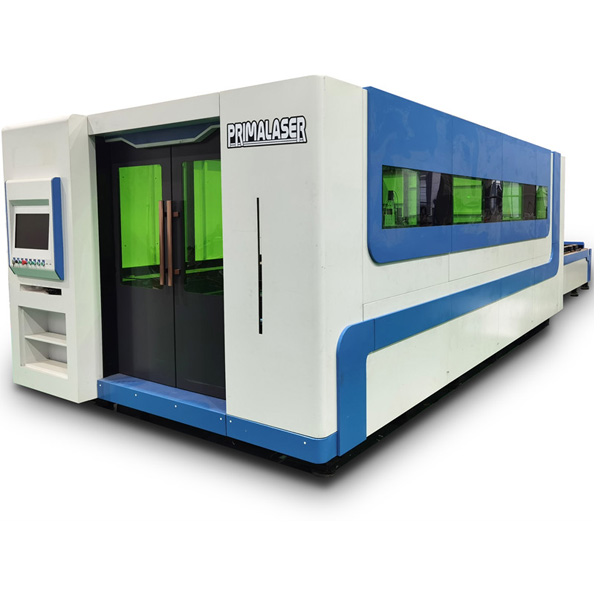

CNC Fibre Laser Cutting Machines for Metal with Exchange Table

Enclosure full cover sheet metal CNC Fibre Laser Cutting Machines for Metal with Exchange Table Product Application

Application: Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, textile machinery,

engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, sheet metal processing, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising, metal processing and other manufacturing industries.

Applies to:Carbon steel, stainless steel, titanium alloy, aluminum alloy etc.

Cutting speed for different materials.(m/min)

Material	Thickness	300w	500w	700w	1000w	2000w
Carbon steel	1	6-7.5	9-10	16	23	30
	2	1.5-2	4-5.3	6	5.5-7	6-8.3
	3	0.7-0.9	2.5-3	2.6	3-3.5	3.2-5
	4		1.5-2.0	1.8-2.4	2.4-3	3-3.5
	5		1.1-1.5	1.3-1.8	1.8-2	2-3.2
	6		0.7-0.9	1.2	1.4-1.6	1.8-2.2
	8			0.6-0.7	0.8-1	1.2-1.6
	10			0.65	0.7-0.8	1.0-1.3
	12				0.65	0.8-1
	14				0.6	0.6-0.85
	16					0.5-0.8
	18					0.4-0.6
	20
	22
	25
Stainless Steel	1	6.6-7	10	16	25	32
	2	1.5-2.3	2.2	6	8	11
	3		0.6-0.7	2.6	2.8	5.5
	4			1.6	1.2	3
	5			0.5	0.8-1	2
	6				0.45	1.2-1.6
	8					0.6-0.85
	10
	12
Aluminum plate	1		3.8-4.2	3.8-4.5	6-7.8	20
	2		0.7-1.3	1-2.2	2.2-3	6.5-7.2
	3				0.5-1	4.4-5
	4					2-3.2
	5					1.0-1.3
	6
	8
Copper plate	1	3.5	3.8-4.5	8-9.2	18	36
	2	0.45-0.75	0.8-1	2-3.2	4.3-6.2	10
	3			0.35	2-2.8
	4				1.5-2.0
	5				0.7-1
	6
	8

Enclosure full cover sheet metal CNC Fibre Laser Cutting Machines for Metal with Exchange Table Reference price:

Fiber laser cutting machine	300w	500w	700w	1000w	1500w	2000w
FOB Qingdao	23-24k	33-42k	39-65k	49-86k	71-90k	105-143k

(Working aea:1500x3000mm for example.Price base on configuration)

Parameters

FEATURES	TECHNICAL DATA
Laser wavelength	1070-1080mm
Cutting area	1500x3000mm
Z-axis path	120mm
Machine tolerances	±0.05mm/m
Maximum support weight of the table	950kg
X,Y axis location accuracy	≤0.01mm
X,Y axis repeat location accuracy	≤0.01mm
X,Y axis idle moving speed	80m/min
Max cutting speed	≤45m/min
Requisite voltage	380V/3ph
Maximum voltage tolerance	+6%/-10%
