Description

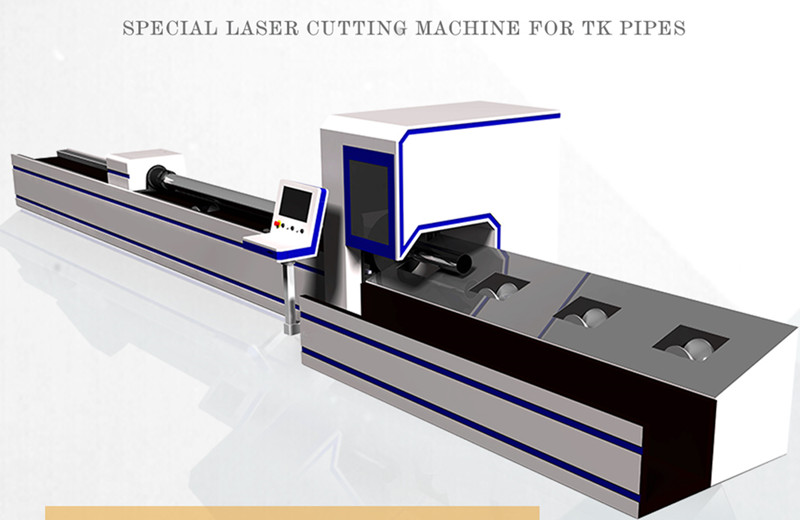

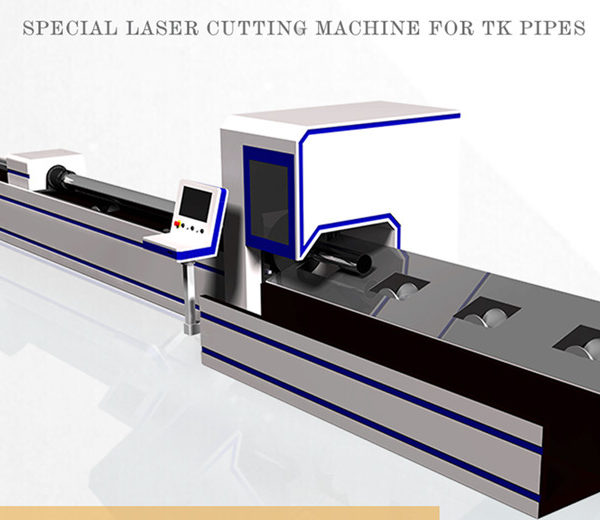

Cnc Fiber Laser Metal Cutting Machine For Stainless Steel Round,Square, Rectangular Pipe And Tube
Video link:
|
Pipe Automatic Bundle Loader features |
|
|
Automatic collecting device: |
|
| Laser power | 1000W 1500W 2000W 2500W 3000W |
| Laser source | IPG/nLIGHT fiber laser resonator |
| Pipe/Tube processing (Φ x L) | Φ=20-300mm, L=6m,8m,12m(Φ=20-300mm for option; L>6m for option) |
| Pipe/Tube category | Round, square, rectangular, oval, waist round, etc |
| Rotate speed | 120 turn/minute |
| CNC control | Cypcut / Germany PA HI8000 |
| Laser head | Switzerland Raytools |
| Power supply | AC380V±5% 50/60Hz (3 phase) |
| Total electric power | 22KW |
| Position accuracy | ±0.03mm/m |
| Repeat position accuracy | ±0.02mm |
| Maximum position speed | 90m/min |
| Acceleration | 1.2g |
| Drawing programming mode | Solidworks,Pro/e,UG, etc import directly |
| Machine weight | 6.5-7.5T |
- Purchase Service
PRIMA LASERhave a specialize and efficiency working team.If you are new on the laser machine, we will give you specialized suggestion of whole work .
2. Shipping Service
PRIMA LASERhave a specialized and independent department which just for arranging shipping for buyer’s goods .The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .
3.Installation Services
Installation Services are available with all PRIMA LASER Company machines.We will dispatch technician to The Buyer’s factory to installation and preparation of machines.
4.Clients Training Services
PRIMA LASER advises the buyer could send own technical come to PRIMA LASER factory to learn how to operate machines.PRIMA LASER Company technician will teach and train the learners hand by hand till he can operate machine by himself.
5.After Sales Service
PRIMA LASER machines guarantee time is one year. Spare parts 1 or 2 years.
