Description

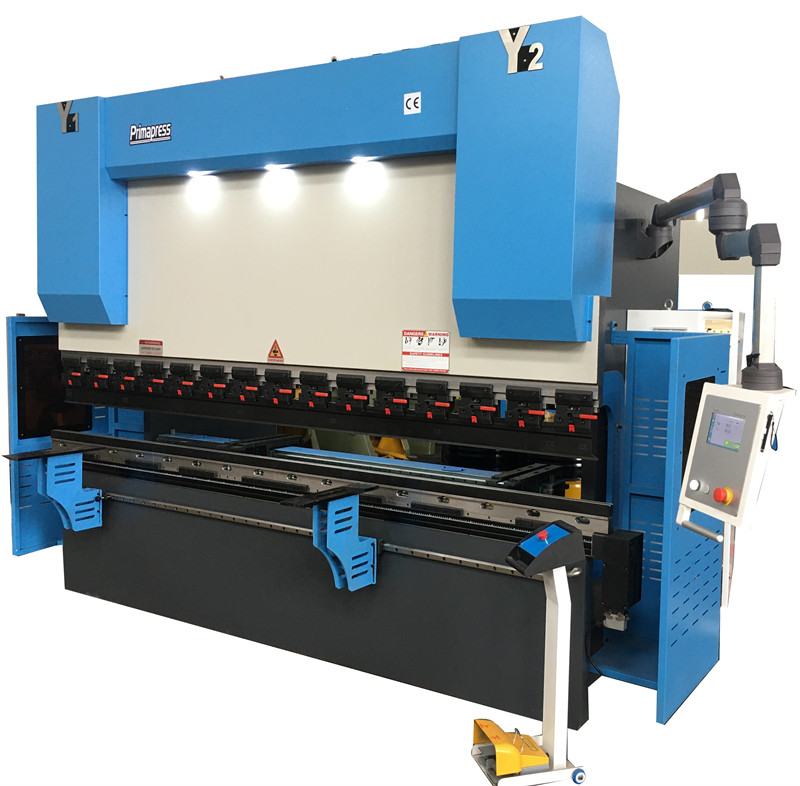

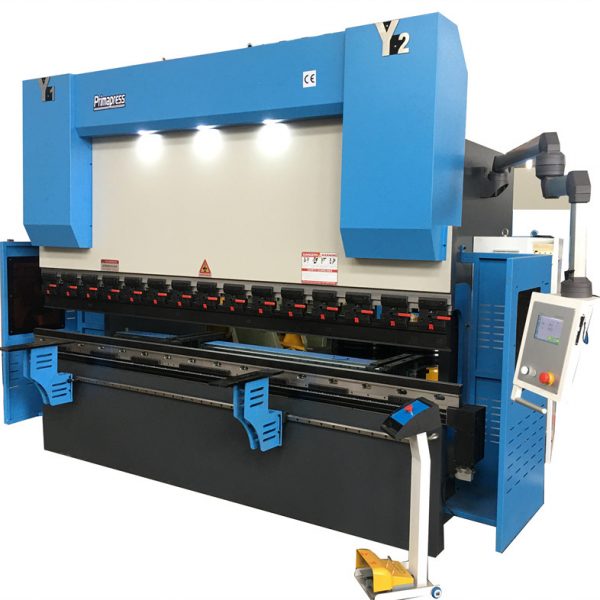

China Torsion bar type sheet metal hydraulic cnc press brake bending machine for iron plate
Torsion bar type cnc hydraulic press brake machine CNC Press break bending machine CT8
The Whole Structure of Press Brake:
■ Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
■Prima PRESS BRAKE is Equipped with the Delem user-friendly user interface,the DA-41 provides all main press brake functionality.
■Automatic tonnage and stroke adjustment for bending angles.Perfect bending results with easy angle input and operation of machine.
■ Provides CNC control of standard Y-axis +X-axis + Manual R-axis + Z-axis.
Attachment with the machine& Machine key components list
| No. | 1 years spares | Remark | Name | Origin | ||
| 1- | Grease gun | Free of charge | Asynchronous motor | Siemens, Germany | ||
| 2- | Keys to button lock and electric cabinet lock | FOC | Controller | CT8, Swiss | ||
| 3- | Foundation bolts | FOC | Transformer | SCHNEIDER | ||
| 4- | O-type sealing rings | FOC | AC contactor | SCHNEIDER | ||
| 5- | Combined washers | FOC | Circuit Breakers | SCHNEIDER | ||
| 6- | Mobile type foot switch | Servo motor | Estun | |||
| 7- | Operation & maintenance manual | In English | Gear pump | Siemens pump | ||
| 8- | Electrical diagram | In English | Sealing parts | Valqua ,Japan | ||
| 9- | Operation Instruction ENGLISH
Operation Instruction（Machine） Packing list, Instruction of System |
Hydraulic Integrated Systems&valves | Bosch, Germany | |||
High positioning BACKGAUGE:
Standard X-axis travel is 500mm with third gauge step capable of gauging parts up to 600mm with standard back gauge (most machines)
■ Stable AC servo motor-driven precision X-axis back gauge with linear guide and ball bearing system.
■Back gauge fingers with two gauging steps used one for short and the other for long bending depths.
■ Back Gauge positioning fingers move along linear bearings with ±0.01 mm. positioning tolerance.
