Description

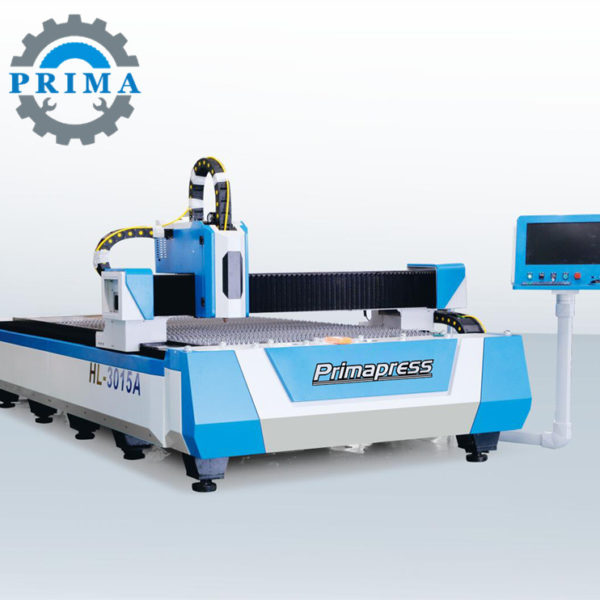

china cnc machine 3015 1000w 1500w fiber laser cutting machine price for sheet metal cutting
Specifications
Cutting Speed:0-60000mm/min
Application:Laser Cutting
Condition:New
Cutting Thickness:0.2-6mm, 0.2-6mm(Depending on the material)
CNC or Not:Yes
Cooling Mode:Water Cooling
Place of Origin:Anhui, China (Mainland)
Model Number:AK-47
Laser type:Fiber laser
Electro – optical conversion efficiency:25-30%
Working area:4500mm*2450mm*1700mm
Power Requirements220V 50Hz/60Hz
The maximum load of the table:500kg
Total weight of machine:2300kg
Place of Origin::Shanghai,China
Laser wavelength:1070-1080nm
Maximum speed:60000mm/min
After-sales Service Provided:Overseas third-party support available
Product Description
|
Laser type
|
Fiber laser
|
|
Electro – optical conversion efficiency
|
25-30%
|
|
Working area
|
4500mm*2450mm*1700mm
|
|
Cutting Thickness
|
0.2-6mm(Depending on the material)
|
|
Power Requirements
|
220V 50Hz/60Hz
|
|
Total weight of machine
|
2300kgs
|
|
Laser wavelength
|
1070-1080nm
|
|
Maximum speed
|
60000mm/min |
Main Features
2）stable and practical: reinforced welding bed, high temperature tempering vibration aging to eliminate stress, machine tool deformation can be controlled at ± 0.02mm;
3） industrial aesthetics design: export standards in Europe and America, the appearance of aesthetic design, simple atmosphere;
ASEADCUT US fiber laser control system, with laser power adjustment function, to ensure the quality of cutting, easy to operate; easy to use;
4）high-quality cutting: Switzerland RAYTOOLS professional laser cutting head, to ensure the best cutting effect;
5）efficient material: used in the standard specifications of metal sheet cutting, saving time and material;
6）fiber laser: the use of Chong Xin laser, stable and reliable power in the domestic first brand, performance guarantee.
Machine Parts
Name:Laser cutting head
Equipped with a non-contact capacitive sensing device. Improve the product’s pass rate. Lens replacement using a drawer, the entire replacement process is convenient and fast. Optical path system with transmission efficiency, stability, school light, maintenance and other advantages
Machine Parts
Name:CNC numerical control system
To WINDOWS as a platform, with open structure, simple operation, easy to learn, is the CNC system and the traditional CNC system, the biggest difference. The system provides machine parameters, PLC program, user-friendly in accordance with their needs to configure and debug, to achieve complex functional requirements of the machi
