Description
Cheap sheet metal hydraulic shearing machine , good price guillotine shearing machines
Video link:

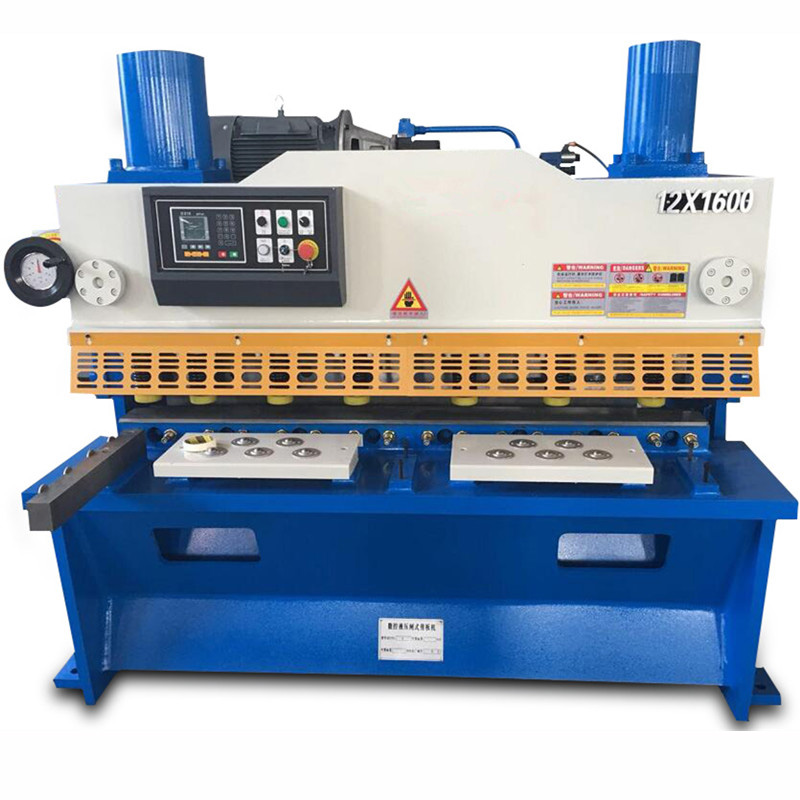

QC11Y hydraulic shearing machine is Prima patented design. it is mainly for the short pieces shearing work.
we can make it 4x1300mm, 4x1600mm 4x2000mm, until to 16x2000mm model.
1,The Machine of Whole structure and Characteristics:
| 1.Totally European design,streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily. |
| 2.As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed. |
| – High accuracy efficiency, simple and convenient operation, good performance, favorable price . |
| – The machine by the European Union CE certification and ISO quality system certification |
2.Required specifications
| NO | Item | Parameter value | Unit | ||
| 1 | Cutting thickness | 4 | MM | ||
| 2 | Cutting length | 2000 | MM | ||
| 3 | Travel times | 12-18 | t/min | ||
| 4 | Backgauge | 600mm | MM | ||
| 5 | Cutting angle | 1.5 degree | |||
| 6 | Motor power | 5 | KW | ||
| 7 | Dimension(L*W*H) | 2500x1180x1700 | MM | ||
| 8 | Control | Digital display X,Y accuracy 0.01mm | |||
| 9 | Weight | Nearly 2.5 | ton | ||
| 10 | Power(optional) | 3-phase AC 220V ± 10% 60HZ | |||
| 11 | Blade Material | 6CrW2Si | |||
3.Attachment With the machine
| No | Items | parameters | remarks |
| 1 | Upper blade Down blade | 2 | set |
| 3 | Bolt &Nut | 8 | |
| 4 | feet nut washer | 4 | |
| 5 | Allen wrench&Grease Gun | 1 set | 3 to 14 mm (maintenance tool) |
| 6 | technical documents | certificate of the product, including operation and maintenance manual, electrical, hydraulic schematics, purchased parts inventory, basic maps, packing list. | |
