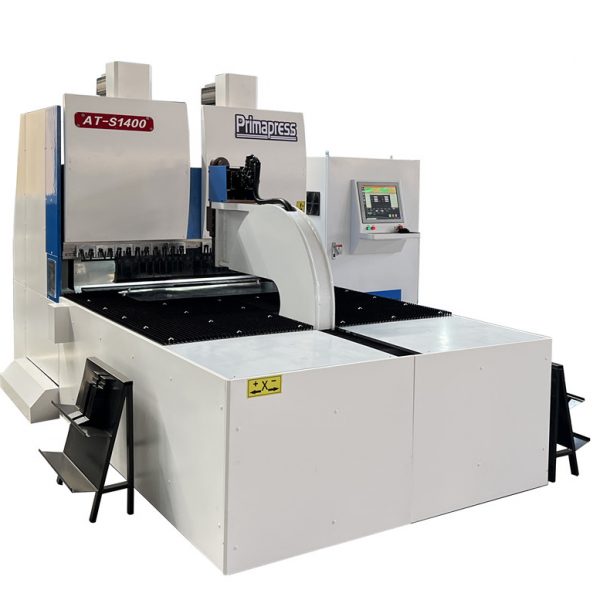

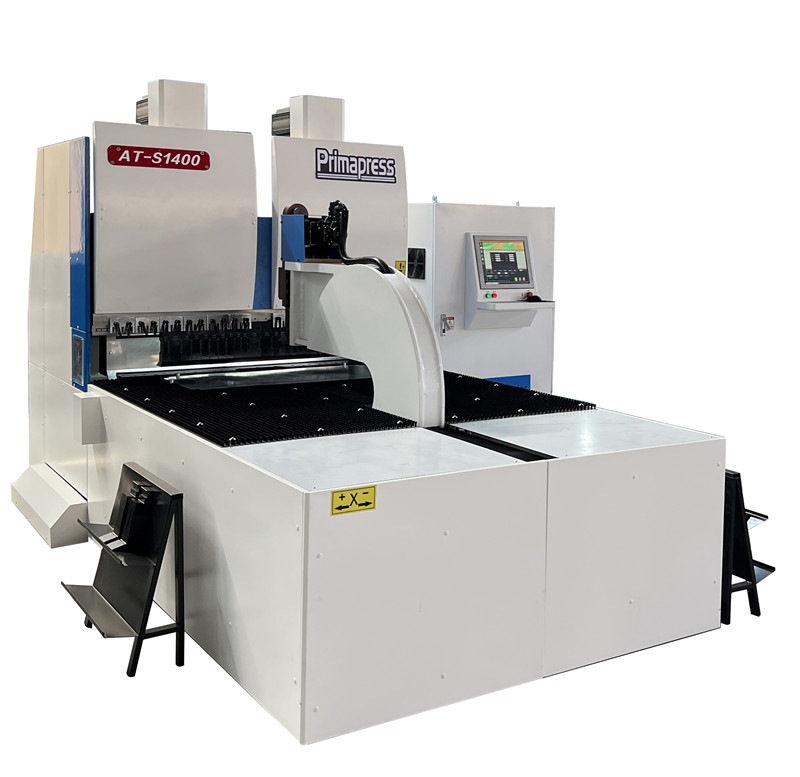

Automatic Panel Bender Metal Plate Bending Machine Electric sheet metal automatic panel bender manufacturers
Primapress panel bender bending center adopts a full servo system. Unlike traditional bending machines, the bending machine mold needs to be pressed down against the fixed part of the bending machine, but the bending work is completed by the blade. During the bending process, the plate The material holder fixes the plate. The blade can be bent up or down in different shapes. First, one side is bent outward, and then it is automatically bent inward. These different actions are controlled by the servo electric drive device, which can ensure the highest positioning accuracy in the bending sequence and bring the best bending effect.
specifications of Automatic Panel Bender Metal Plate Bending Machine Electric sheet metal automatic panel bender manufacturers.
| Name | Brands |
| Operating system | Above Windows 7 |
| Control system | 13 axis + concurrent linkage control system |
| Servo motor | Independent R&D, full closed-loop control |
| Screw | Taiwan-HIWIN |
| Bearing | NSK or NACHI |
| Linear guide | Taiwan-HIWIN／Nanjing Gongyi |
| Machine bed | High grade casting integral forming |
| Bending knife | Patented ball cutter head, more wear-resistant, longer service life |
| Sucker | AIRBEST |
| Pneumatic component | Japan SMC/Taiwan Yadec |
| Oil system | Taiwan Yuxiang |
Automatic Panel Bender Metal Plate Bending Machine Electric sheet metal automatic panel bender manufacturers PRODUCT SPECIFICATIONS
| No | Item | Data |
| 1 | Maximum bending speed | 0.2 s/time |
| 2 | Maximum bending width | 2500mm |
| 3 | Maximum bending size | 2500*2500mm |
| 4 | Bending height | 170mm |
| 5 | The rated voltage | 380V |
| 6 | Peak power | 25KW |
| 7 | CNC system | PC-Base New Independent Research and Development 9 Axis Linkage Full Servo CNC System |
| 8 | Lathe bed | Casting bed |
