Description

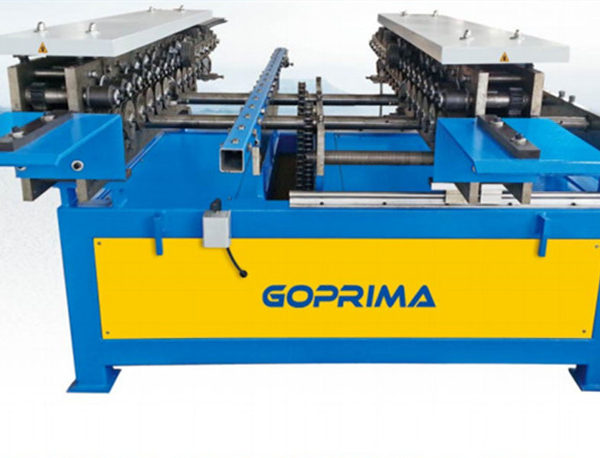

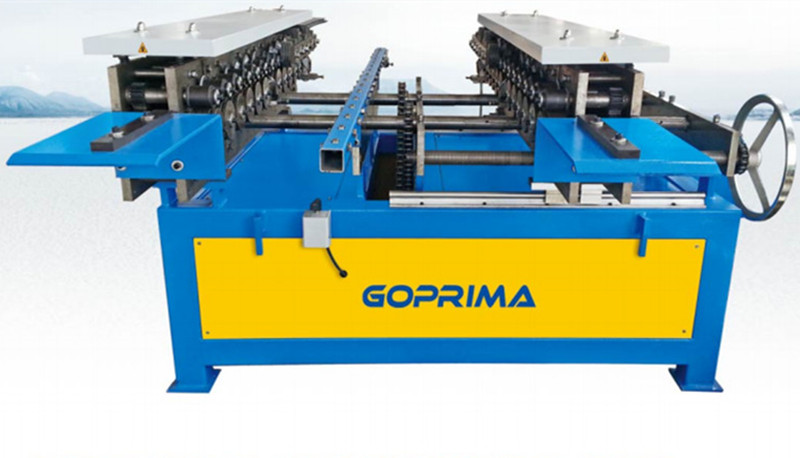

Air duct pipe Double TDF flange machine Doublex TDF Flange forming machine
One. Features
- TDF unit is one of the two universal flange making systems in the world, with low cost, well-seal and easy-fabrication, specially suitable to produce a duct with medium section area and applied in large-scale industrial manufacture.
- As a flexible machine, TDF will adapt to an auto line with a Pittsburgh lock machine, notcher and bending machine. It may also be used on site.
- TDF system is divided into two types: T-12,T-15, T-12, T-15 form one side into clip“ ”and the other side into flange “ ” at the same time.
- TDF may be commonly used for its width ranges from 300 to 1530mm. Its maximum work speed is 6 m/min.
Two. Technical Data:
| Model | Motor | Capacity (mm) | Shape | “a” | Weight (kg) | Dimension (L*W*H) |
| (kw)
|
“a” Size | (mm) | ||||
| (mm) | ||||||
| T-12 | 3 | 0.8-1.2 | 35±0.5 | 1400 | 2800×700×1000 | |
| T-15 | 4 | 0.6-1.5 | 35±0.5 | 1800 | 3200×750×1000 | |
| 2-T12 | 3.7 | 0.8-1.2 | 35±0.5 | 3000 | 3200×2700×1100 |
If you want special design , tell us .
