Description

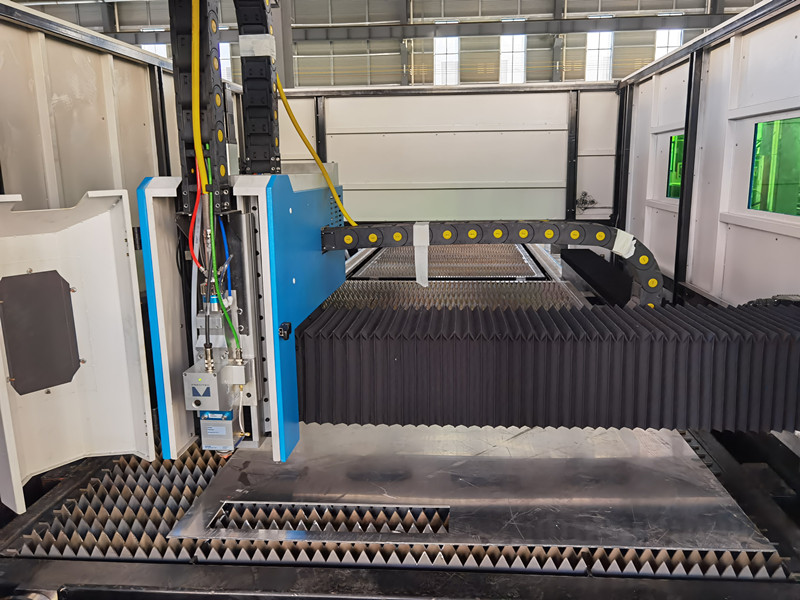

3kw 4kw IPG full cover exchange table aluminum copper cutting cnc fiber laser cutting machine

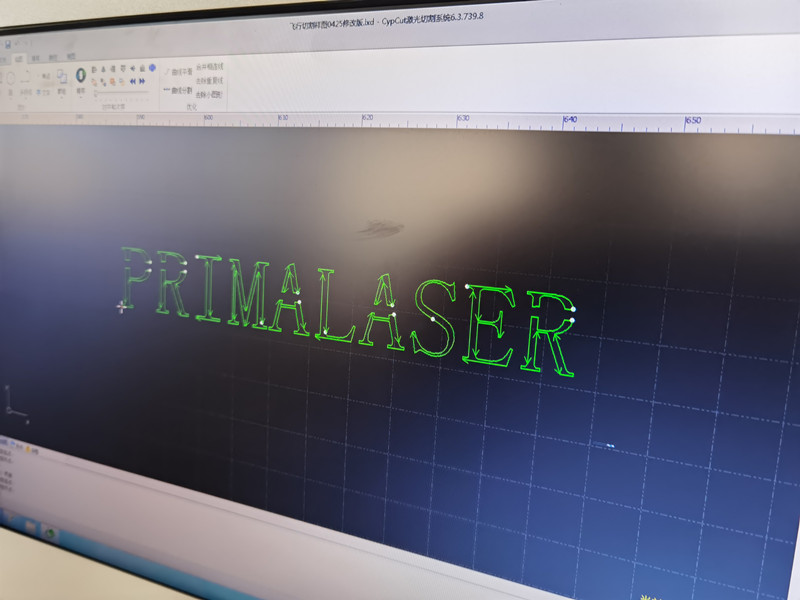

Cypcut control system with exchangeable table and Auto focus, Voltage stablizer
Japanese Yaskava servo motors system
Germany ROR gears
Japan SMC /Airtac pneumatic parts
French Schneider electronic parts
French Motoreducer reducer
Raytools BM114 head or Precitec head
Bochu CNC system.
Camero to Checking cutting
Auto exchangeable working table
Integrated cast aluminum beam
Taiwan HIWIN square rail
Laser head automatically adjust system.
Smoke purify system, air fans
Water cooling machine
Three years warranty
3year (the laser generator 2 years)
| Model | PM 4000W Fiber Laser cutting machine |
| Laser Type | IPG |
| Laser Wavelength | 1070nm |
| Laser Maximum Power | 4000W |
| Max. Cutting thickness | Carbon steel 22mm
Stainless steel 16mm Brass 12mm |
| Total Power Consumption | <30KW |
| Working Size | 3000X1500mm , 4000x2000mm, 6000x2000mm |
| Max.cutting speed | 0-80m/min(Depending on the material and thickness) |
| X, Y, Z Axis Orientation Precision | ≤±0.05mm/m |
| X, Y, Z Axis Repeat Precision | ≤±0.03mm /m |
| Min line width | ≤0.15mm |
| Maximum Empty Running Speed | 120m/min |
| Driving way | Japanese YASKAWA servo motors system |
| Transmission way | Y-axis imported gear rack double driver,
X-axis imported ball screw |
| Cooling System | Water Cooling |
| Continous working time | 24 Hours |
| Environment temperature | 0-35°C |
| Power requirements | 380V /50Hz or 60Hz |
