Description

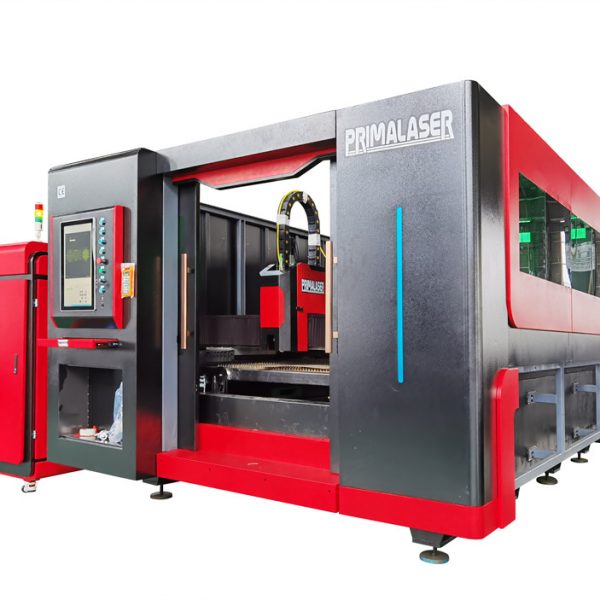

3000W 4000w Raycus exchangeable table fully enclosed sheet metal fiber laser cutting machine
this is Primalaser red series 3000W Raycus brand Cypcut control system with exchangeable table and auto focus head
Voltage stablizer
Japanese FUJI servo motors system
Germany OAR gears
Japan SMC /Airtac pneumatic parts
French Schneider electronic parts
French Motoreducer reducer
Raytools laser head
Auto exchangeable working table
Integrated cast aluminum beam
Taiwan HIWIN square rail
Laser head automatically adjust system.
Smoke purify system
Water cooling machine
Three years warranty
3000W 4000w Raycus exchangeable table fully enclosed sheet metal fiber laser cutting machine
| Model | PM 3000W Fiber Laser cutting machine |
| Laser Type | Raycus |
| Laser Wavelength | 1070nm |
| Laser Maximum Power | 3000W |
| Max. Cutting thickness | Carbon steel 20mm
Stainless steel 10mm Brass 8mm |
| Total Power Consumption | <20KW |
| Working Size | 4000X1500mm |
| Max.cutting speed | 0-80m/min(Depending on the material and thickness) |
| X, Y, Z Axis Orientation Precision | ≤±0.05mm/m |
| X, Y, Z Axis Repeat Precision | ≤±0.03mm /m |
| Min line width | ≤0.15mm |
| Maximum Empty Running Speed | 120m/min |
| Driving way | Japanese FUJI servo motors system |
| Transmission way | Y-axis imported gear rack double driver,
X-axis imported ball screw |
| Cooling System | Water Cooling |
| Continous working time | 24 Hours |
| Environment temperature | 0-35°C |
| Power requirements | 220V/380V /50Hz or 60Hz |
