Description

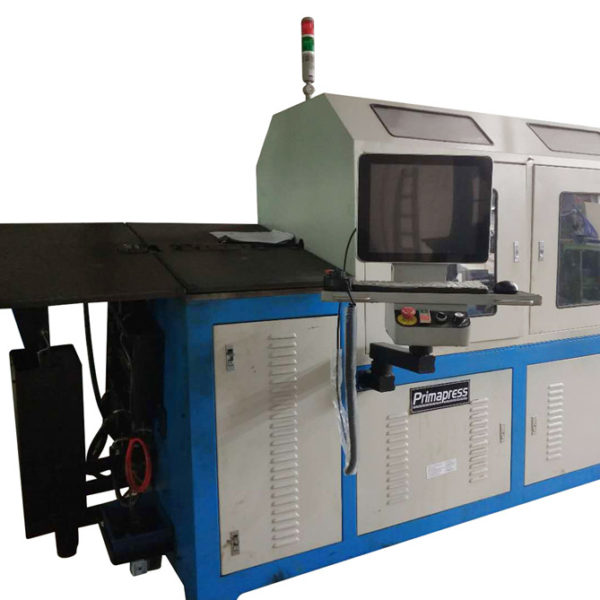

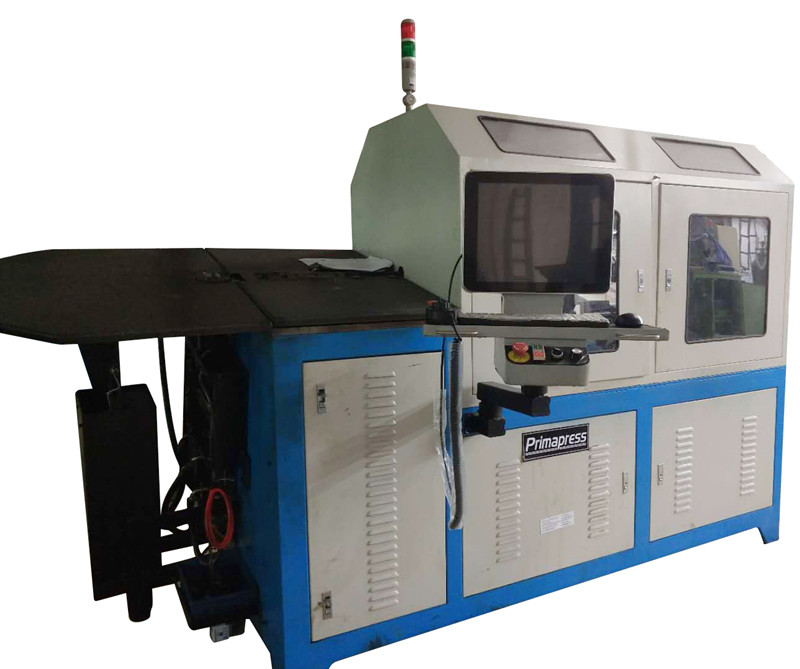

3-8MM stainless steel 2d cnc wire bending machine, 2d wire bending machine
Video link in Youtube:
Advantages & Feature:
CNC wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki Servo motorand screen display with Taiwan controller.
3-4 pairs feeding roller, feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotatings more fast and light, turning angle is more precise and stable.
Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.
Application Field:
1) Auto Industryarea
2) Netal wire industry
3) Furniture and kitchen
5) Hardware industry
6) Mattress, sofa spring srea
7) Architecture area
8) Hardware Artcrafe
Pls contact freely, i will show more testing video 3d cnc wire bending machine as your request.
Technical Parameters
| Model | PM3D | |
| Bending Diameter | 2-6&5-10&6-13mm | |
| Feeding Speed | 70m/min | |
| Twisting head off 90 ° minimum time required | 0.1s | |
| Reverse the core conversion minimum time required | 0.1s | |
| Lane 90 ° minimum time required | 0.08s | |
| Maximum speed lifting platform | 333mm/sec | |
| Maximum lifting speed reversing mechanism | 250mm/sec | |
| The maximum feed stroke | Unlimited | |
| Feeding mode | Wheel Wire; | |
| Maximum bending radius | 50mm | |
| Maximum bending angle | 190° | |
| Each number can be set bend | Unlimited | |
| Set the number of files | Unlimited | |
| Working speed | Bending speed | 180°/0.5sec |
| Rotation speed | 360°/2sec | |
| Feeding speed | 700mm/1sec | |
| Accuracy | Bending angle | ±0.05° |
| Rotation angle | ±0.05° | |
