Description

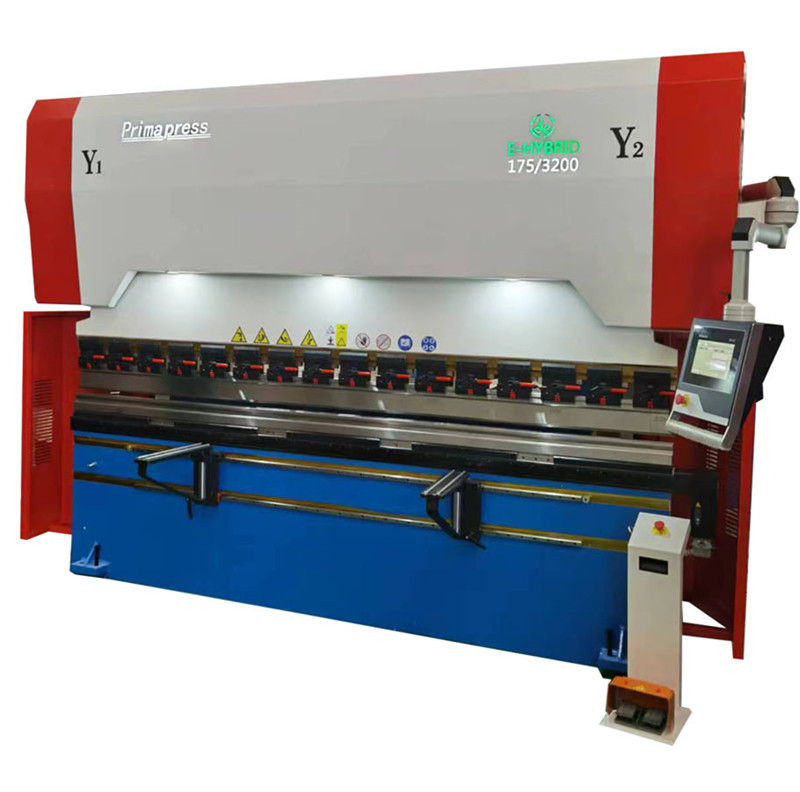

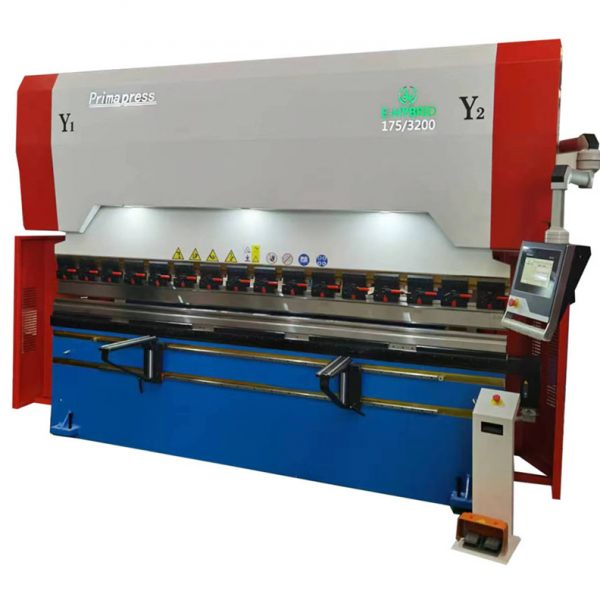

200t/3200mm 4+1 Axis 3+1 axis cnc electro hydraulic cnc press brake bending machine
Required specifications for reference.
| No | Items | parameters | remarks | Leading Bending technology
Excellent Manufacturer |
| 1 | Nominal force | 2000KN | ||
| 2 | Bending length | 3200mm | ||
| 3 | Distance between | 2550mm | ||
| 4 | Throat | 400mm | ||
| 5 | Stroke | 250 mm | ||
| 6 | Max open height | 420 mm | ||
| 7 | X, Y axis travel | repeat positioning accuracy: ±0.02mm | ||
| 8 | Approach speed(max) | 160mm/s | ||
| 9 | Working speed | 120mm/s | ||
| 10 | Backing speed | 140mm/s | ||
| 11 | Control axis | X,Y1,Y2,R, CNC control | ||
| 12 | Dimension | 3500x2000x2700mm | Removable | |
| 13 | Electrics | 380V/50Hz/3Ph | Optional | |
| 14 | Motor | 11 | Kw | |
Attachment with the machine& Machine key components list
| No. | 1 years spares | Remark | Name | Origin | |
| 1- | Grease gun& foot switch | Free of charge | Asynchronous motor | Siemens, Germany | |
| 2- | Keys to button lock and electric cabinet lock | FOC | Controller | Delem DA53T, Holland | |
| 3- | Foundation bolts | FOC | Transformer | SCHNEIDER | |
| 4- | O-type sealing rings | FOC | AC contactor | SCHNEIDER | |
| 5- | Combined washers | FOC | Circuit Breakers | SCHNEIDER | |
| 6- | Mobile type foot switch | Servo motor | Estun | ||
| 7- | Operation & maintenance manual | In English | Gear pump | Siemens pump | |
| 8- | Electrical diagram | In English | Sealing parts | Valqua ,Japan | |
| 9- | Operation Instruction ENGLISH
Operation Instruction（Machine） Packing list, Instruction of System Certificates of quality |
Hydraulic Integrated Systems | Bosch, Germany, | ||
| Quick release | China Shanghai | ||||
X R Axis backgauge 4+1 with Y1, Y2 Axis.
